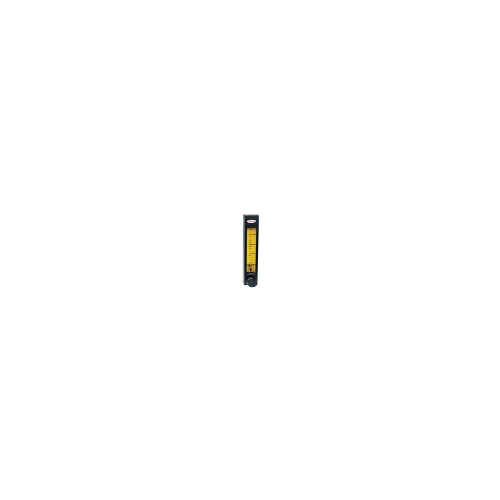

Dwyer DR4144 High Flow Glass Flowmeter
Normally In Stock
Code: 574727
Dwyer DR4144 - High flow glass flowmeter, flow rate 1-16 SCFM (20-500 SLPM) air.
Condition: New
Usually ships Same Day or Next Day$2018.46
Sale Price
$1682.05
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DR4144 is a High Flow Glass Flowmeter designed for use with compatible gases or liquids. It has a temperature range of up to 250°F (121°C) and an accuracy of ±10% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute). The flowmeter is mounted vertically and can handle pressures up to 200 psig (13.8 bar). Constructed with borosilicate glass and 316 SS materials, it offers excellent durability. The flowmeter comes with a 6-turn needle valve and a 10:1 turn-down ratio. Its 3/8" female NPT connection and direct reading 127 mm scales for air or water make it easy to use and read. With a repeatability of ±0.25% of scale reading, this flowmeter is highly accurate and reliable.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Flow Meter
(Instrument-Sensor) Measurement Accuracy
10%
(Instrument-Sensor) Temperature Range
250°F/121°C
(Instrument-Sensor) Type
High Flow Glass
Manufacturer
Dwyer Instruments
Features
Series DR4 High Flow Glass Flowmeters offer a simplified solution to the problem of fluid flow indication at higher capacity levels
Flowmeters have a direct reading scale for air or water and are designed to withstand even the harshest industrial applications
Permanently fused ceramic scale has integral float guides for optimum float performance
Reflective plastic background and 1.5 X magnification lens reduces eye fatigue and allows for more accurate readings
Units include a safety blow-out back panel for additional protection.
