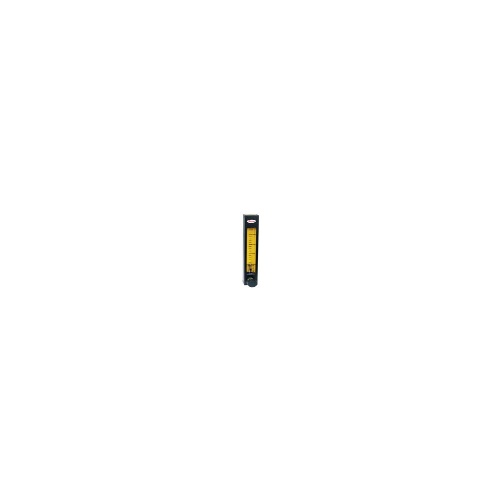

Dwyer DR4106M High Flow Glass Flowmeter
Normally In Stock
Code: 574720
Dwyer DR4106M - GL FLMTR DR4106M
Condition: New
Usually ships Same Day or Next Day$1708.32
Sale Price
$1423.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DR4106M High Flow Glass Flowmeter is a reliable and precise instrument for measuring the flow of compatible gases or liquids. With a temperature range of up to 250°F and an accuracy of ±10% FS, it is suitable for various applications. The vertical mounting allows for easy installation, and the wetted materials ensure durability. The flowmeter features a 6-turn needle valve and a pressure limit of 200 psig. With a turn-down ratio of 10:1, it offers flexibility in different flow rates.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Flow Meter
(Instrument-Sensor) Measurement Accuracy
10%
(Instrument-Sensor) Temperature Range
250°F/121°C
(Instrument-Sensor) Type
High Flow Glass
Manufacturer
Dwyer Instruments
Features
Series DR4 High Flow Glass Flowmeters offer a simplified solution to the problem of fluid flow indication at higher capacity levels
Flowmeters have a direct reading scale for air or water and are designed to withstand even the harshest industrial applications
Permanently fused ceramic scale has integral float guides for optimum float performance
Reflective plastic background and 1.5 X magnification lens reduces eye fatigue and allows for more accurate readings
Units include a safety blow-out back panel for additional protection.
