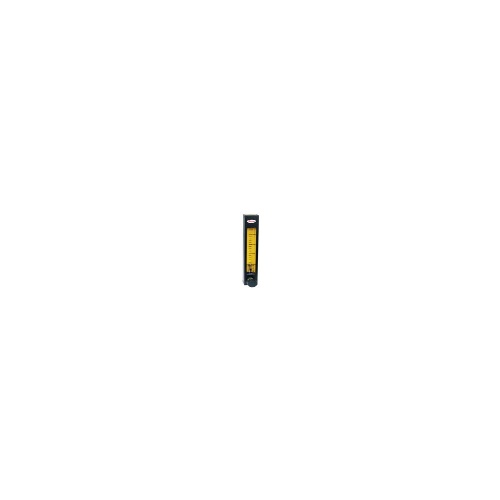

Dwyer DR4104 High Flow Glass Flowmeter
Normally In Stock
Code: 574717
Dwyer DR4104 - High flow glass flowmeter, flow rate 1-16 SCFM (20-500 SLPM) air.
Condition: New
Usually ships Same Day or Next Day$1708.32
Sale Price
$1423.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DR4104 High Flow Glass Flowmeter is a reliable solution for measuring flow rates of compatible gases or liquids. With a temperature range of 250°F (121°C) and vertical mounting, it offers accuracy within ±10% FS @ 70°F (21.1°C) and 14.7 psia. Featuring borosilicate glass flowtube, 316 SS float, and brass or 316 SS fittings, it can withstand pressures up to 200 psig. Its repeatability of ±0.25% and 10:1 turn-down ratio provide precise readings, while the 6-turn needle valve ensures easy control. Connection is made through a 3/8" female NPT.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Flow Meter
(Instrument-Sensor) Measurement Accuracy
10%
(Instrument-Sensor) Temperature Range
250°F/121°C
(Instrument-Sensor) Type
High Flow Glass
Manufacturer
Dwyer Instruments
Features
Series DR4 High Flow Glass Flowmeters offer a simplified solution to the problem of fluid flow indication at higher capacity levels
Flowmeters have a direct reading scale for air or water and are designed to withstand even the harshest industrial applications
Permanently fused ceramic scale has integral float guides for optimum float performance
Reflective plastic background and 1.5 X magnification lens reduces eye fatigue and allows for more accurate readings
Units include a safety blow-out back panel for additional protection.
