Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

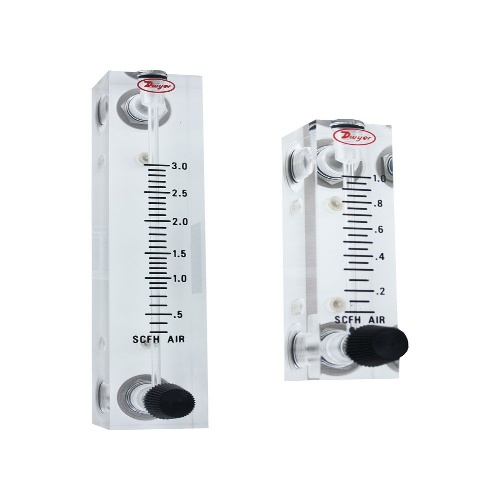

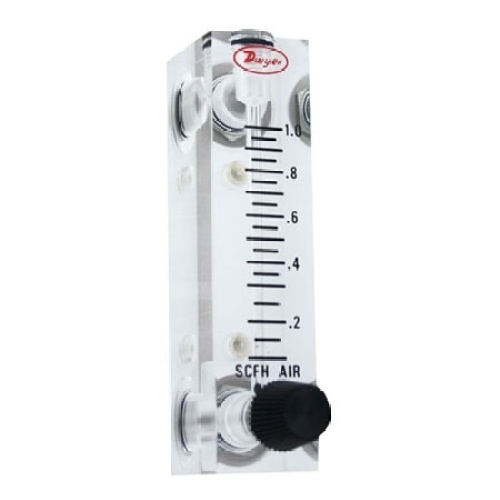

Dwyer VFA-1-SS Visi-Float® Acrylic Flowmeter
Normally In Stock
Code: 573489
Dwyer VFA-1-SS - Flowmeter, range .1-1 SCFH air.
Condition: New
Usually ships Same Day or Next Day$70.97
Sale Price
$59.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer VFA-1-SS is a vertical mounting Visi-Float® Acrylic Flowmeter designed for accurate measurement of gases and liquids. With a pressure limit of up to 100 psig (6.9 bar), it features a range of wetted materials including acrylic plastic, brass, and stainless steel. The flowmeter provides a 5% accuracy for VFA and 3% accuracy for VFB ranges, with a variety of process connections and scales available.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Flow Meter
(Instrument-Sensor) Type
Visi-Float® Acrylic
(Instrument-Sensor) Measurement Accuracy
5.0%
(Instrument-Sensor) Measurement Accuracy
3.0%
Manufacturer
Dwyer Instruments
Features
Bodies are cut and precision machined from solid, clear acrylic blocks allowing for complete visual inspection
White background allows for better visibility of the float increasing reading accuracy
Direct reading scales are hot stamped into the plastic eliminating the need for troublesome conversions and increasing product operating life
Precision machined tapered bore enables high repeatability
Low installation costs with back or end connection options with metal mounting inserts that can be supported directly by system piping
Downloads
Code: 573489
Dwyer VFA-1-SS Visi-Float® Acrylic Flowmeter
$70.97
Sale Price
$59.14
