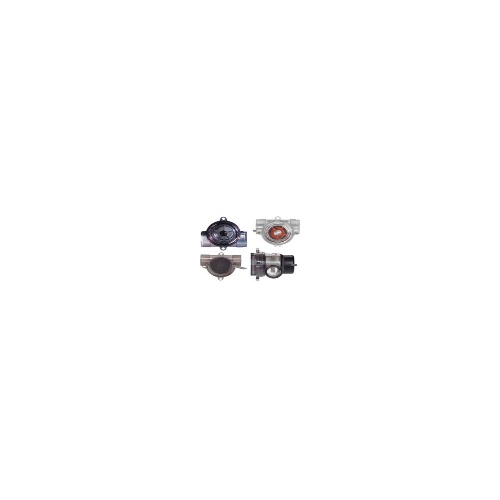

Dwyer SFI-801-3/4-A711 Sight Flow Indicator/Transmitter
Normally In Stock
Code: 573358
Dwyer SFI-801-3/4-A711 - Polycarbonate sight flow indicator with A-711 sensor, range 3-35 GPM (11.4-132.5 LPM), 3/4" female NPT.
Condition: New
Usually ships Same Day or Next Day$298.12
Sale Price
$248.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer SFI-801-3/4-A711 Sight Flow Indicator/Transmitter is a versatile and reliable product suitable for a wide range of applications. With a temperature range of -20 to 212°F and an accuracy of ±5% of FS, it provides accurate and reliable measurements. The power requirement of 8 to 28 VDC ensures easy integration into existing systems. The electrical connections and output signals make it convenient to use. It is compatible with various fluids and can withstand pressures up to 125 psi. With a frequency range of 0 to 100 Hz and a maximum viscosity of 200 SSU, it can handle different flow conditions. The electrical termination provides flexibility in terms of input and output options. Overall, the Dwyer SFI-801-3/4-A711 is a durable and efficient sight flow indicator/transmitter.
Specifications
(Instrument-Sensor) Application
Liquid
Component
Flow Transmitter
(Instrument-Sensor) Type
Sight Flow Indicator/Transmitter
(Instrument-Sensor) Temperature Range
-20 - 212°F/-29 - 100°C
(Instrument-Sensor) Measurement Accuracy
5.0%
Manufacturer
Dwyer Instruments
Features
Constructed of clear plastic enabling 360° viewing of the rotor for easy flow indication
SFI-800 models are constructed of Polysulfone with excellent chemical compatibility, high pressure and temperature ratings, and all wetted materials are FDA/NSF ratable for potable water applications
SFI-801 models are constructed of UV stabilized Polycarbonate making them ideal for outdoor applications and easy view bright red impeller
All three output packages cam be installed or replaced in the field without any tools and without removing the body from the process line
Units are weather-tight for outdoor or wash-down area use
A-713 features a user-friendly set point button which is set at the desired flow rate with red LED indication of switch status
