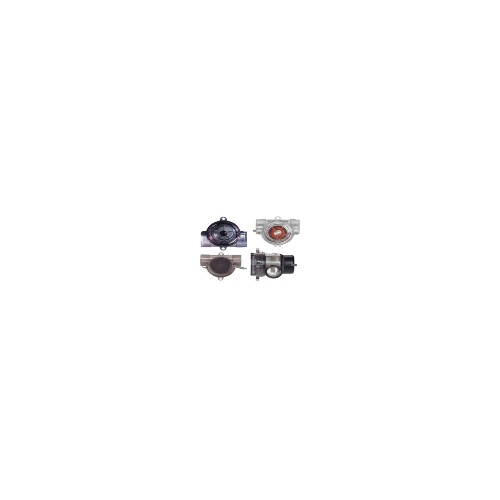

Dwyer SFI-801-1/2 Sight Flow Indicator/Transmitter
Normally In Stock
Code: 573355
Dwyer SFI-801-1/2 - Polycarbonate sight flow indicator only, range 2-20 GPM (7.6-75.5 LPM), 1/2" female NPT.
Condition: New
Usually ships Same Day or Next Day$129.31
Sale Price
$107.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer SFI-801-1/2 Sight Flow Indicator/Transmitter is a temperature range of -20 to 212°F (-29 to 100°C). With an accuracy of ±5% of FS, it requires 8 to 28 VDC power. It has electrical connections for ground, normally open, normally closed, and power supply. The output signal includes normally open and normally closed switches. It is compatible with various fluids and has wetted materials such as Polysulfone, UV stabilized polycarbonate, 316 SS, and more. It has a pressure limit of 125 psi (8.62 bar) and maximum viscosity of 200 SSU. The electrical termination includes ground, 15 to 28 VDC input, and 1 to 10 VDC output.
Specifications
(Instrument-Sensor) Application
Liquid
Component
Flow Transmitter
(Instrument-Sensor) Type
Sight Flow Indicator/Transmitter
(Instrument-Sensor) Temperature Range
-20 - 212°F/-29 - 100°C
(Instrument-Sensor) Measurement Accuracy
5.0%
Manufacturer
Dwyer Instruments
Features
Constructed of clear plastic enabling 360° viewing of the rotor for easy flow indication
SFI-800 models are constructed of Polysulfone with excellent chemical compatibility, high pressure and temperature ratings, and all wetted materials are FDA/NSF ratable for potable water applications
SFI-801 models are constructed of UV stabilized Polycarbonate making them ideal for outdoor applications and easy view bright red impeller
All three output packages cam be installed or replaced in the field without any tools and without removing the body from the process line
Units are weather-tight for outdoor or wash-down area use
A-713 features a user-friendly set point button which is set at the desired flow rate with red LED indication of switch status
