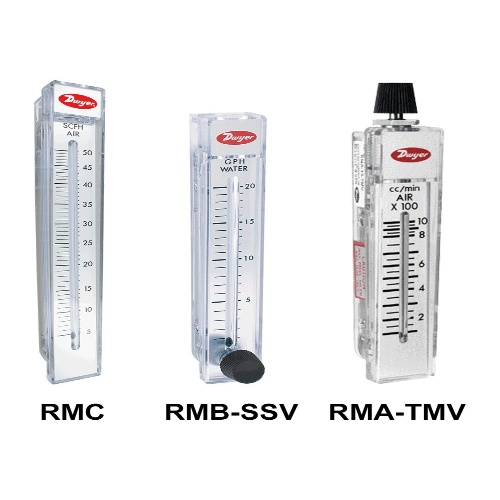

Dwyer RMA-26-TMV Rate-Master® Polycarbonate Flowmeter
Normally In Stock
Code: 573172
Dwyer RMA-26-TMV - Flowmeter, range .5-5 LPM air.
Condition: New
Usually ships Same Day or Next Day$130.52
Sale Price
$108.77
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer RMA-26-TMV is a reliable and accurate Rate-Master® Polycarbonate flowmeter suitable for gases and liquids. It has a temperature capacity of up to 130°F and offers exceptional accuracy, with RMA, RMB, and RMC models providing 4%, 3%, and 2% of FS accuracy, respectively. The flowmeter's wetted materials include polycarbonate, neoprene, Buna-N, SS, and SS black glass, aluminum, K monel, or tungsten carbide. It can endure a maximum pressure of 100 psi and features different process connection options (1/8", 1/4", and 1/2" female NPT).
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Flow Meter
(Instrument-Sensor) Type
Rate-Master® Polycarbonate
(Instrument-Sensor) Temperature Range
130°F/54°C
(Instrument-Sensor) Measurement Accuracy
2.0%
(Instrument-Sensor) Measurement Accuracy
3.0%
(Instrument-Sensor) Measurement Accuracy
4.0%
Manufacturer
Dwyer Instruments
Features
Eliminate the need for troublesome conversions with direct reading scales
Reduce installation damage and cost due to stainless steel backbone that absorbs piping torque
Long operation life with durable, shatter-proof polycarbonate body
High repeatability enabled by precision injection molding around a precision tapered pin
Increased reading accuracy with special integral flow guides that stabilize float movement
Save time with instantaneous flow reading with the presence of scale graduations on both side of the indicating tube
