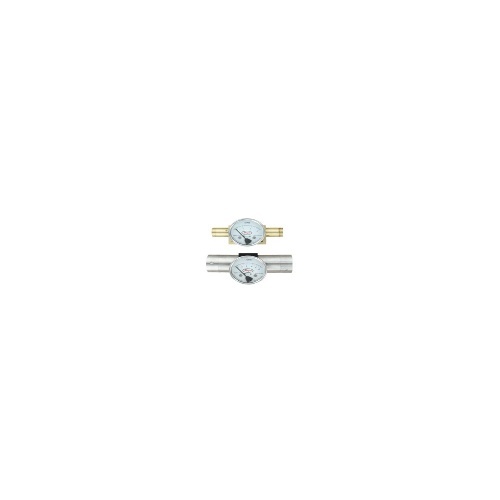

Dwyer DTFW-3S-25W Variable-Area Flowmeter For Liquids/Oil
Normally In Stock
Code: 572596
Dwyer DTFW-3S-25W - Range 0-25 GPM water, 1" npt, ss body
Condition: New
Usually ships Same Day or Next Day$2519.75
Sale Price
$2099.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DTFW-3S-25W Variable-Area Flowmeter is designed for measuring liquids and oil with an accuracy of ±2% FS for liquid/oil calibration and ±5% FS for air calibration. It is compatible with liquids and gases and has a temperature range of -40 to 200°F (-40 to 93°C). The flowmeter is constructed with 316 SS, brass or aluminum body, 302 SS or PTFE-coated spring, and Buna seals. It has a pressure limit of 1500 psig (100 bar) for DTFW-3S and 3000 psig (200 bar) for other DTFW models and DTFA. The flowmeter is equipped with a 2.5" (63.5 mm) diameter dial face and offers ±1% FS repeatability.
Specifications
(Instrument-Sensor) Type
Variable Area
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Flow Meter
(Instrument-Sensor) Temperature Range
-40 - 200°F/-40 - 93°C
(Instrument-Sensor) Measurement Accuracy
2.0%
(Instrument-Sensor) Measurement Accuracy
5.0%
Manufacturer
Dwyer Instruments
Features
Durable metal construction ensures great reliability and the strength to withstand system pressures of up to 3000 psig (200 bar).
Shatter proof construction, unlike glass tube variable area flowmeters, yields long operation life
Preform precisely in high temperature, high vibration, shock-prone environments
