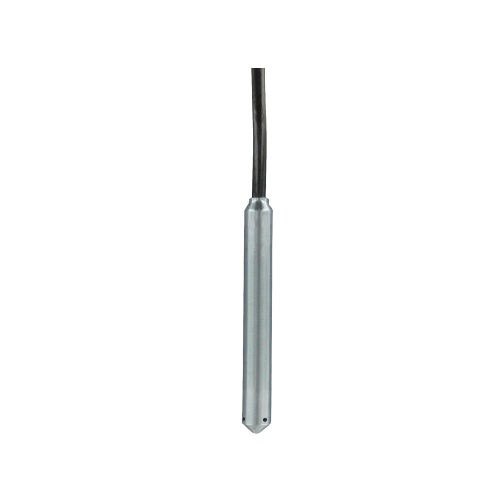

Dwyer MBLT-2SB-IVPM-30-36 Miniature Submersible Level Transmitter
Normally In Stock
Code: 572498
Dwyer MBLT-2SB-IVPM-30-36 - Mini submersible level transmitter, .10% accuracy, surge protection, 30 meter range, 4-20mA output, 36 meter of vented polyurethane cable.
Condition: New
Usually ships Same Day or Next Day$1524.28
Sale Price
$1270.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer MBLT-2SB-IVPM-30-36 is a miniature submersible level transmitter that can accurately measure liquid levels in a temperature range from -4 to 176°F (-20 to 80°C). It has an accuracy of ±0.25% or ±0.10% FS, with the configured ranges of 4.3 to 4.9 psi (10 to 11.54" w.c.) having an accuracy of ±0.30% FS. The transmitter operates with a power requirement of 10 to 33 VDC for current output or 8 to 33 VDC for voltage output. It has a response time of less than 50 ms and comes with wire pigtails for electrical connections. The output signal can be either 4 to 20 mA DC 2-wire or 0 to 5V* depending on the model. The transmitter is compatible with a wide range of liquids and is made of durable materials such as 316 SS body and nose, polyether polyurethane or ETFE cable, fluoroelastomer seals, and polyolefin label. It has a pressure limit of 2x FS and a thermal effect of ±0.45% FS TEB for 0.25% accuracy or ±0.30% FS TEB for 0.10% accuracy. The transmitter is surge/lightning protected per EN61000-4-5, Class 5 and has a loop resistance of 1000Ω at 30 VDC for current output.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Supply Voltage
10-33 VDC
(Instrument-Sensor) Temperature Range
-4 - 176°F/-20 - 80°C
Component
Miniature Submersible Level Transmitter
(Instrument-Sensor) Supply Voltage
8-33 VDC
Manufacturer
Dwyer Instruments
Features
Slender 0.63˝ (16 mm) diameter design fits in narrow openings
Constructed for years of trouble free service with welded 316 SS body and 316 SS nose cap
Body top is 316 SS and tapered to prevent damage or snares when pulling the unit out of the installation
Low power voltage output models are ideal for remote level monitoring with rechargeable battery and solar panel
Maintenance free filter on vent tube eliminates particulate water droplets from entering the transducer
Incorporates lightning and surge protection, eliminating both power supply surges and lightning ground strike transients
