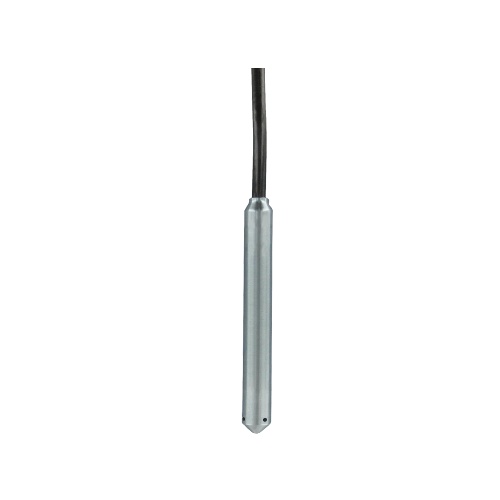

Dwyer MBLT-2SB-IVPM-100-106 Miniature Submersible Level Transmitter
Normally In Stock
Code: 572495
Dwyer MBLT-2SB-IVPM-100-106 - Mini submersible level transmitter, .10% accuracy, surge protection, 100 meter range, 4-20mA output, 106 meter of vented polyurethane cable.
Condition: New
Usually ships Same Day or Next Day$2537.05
Sale Price
$2114.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer MBLT-2SB-IVPM-100-106 is a miniature submersible level transmitter designed for monitoring compatible liquids. It has an operating temperature range of -4 to 176°F (-20 to 80°C) and offers accuracy of ±0.25% or ±0.10% FS, with ±0.30% FS accuracy for specific configured ranges. The transmitter has a quick response time of < 50 ms and can be powered by a current output of 10 to 33 VDC or a voltage output of 8 to 33 VDC. It provides an output signal of 4 to 20 mA DC 2-wire or 0 to 5V* (model dependent), and comes with surge/lightning protection. The wetted materials include a 316 stainless steel body and nose, polyurethane or ETFE cable, fluoroelastomer seals, and a polyolefin label. The transmitter can handle pressure up to 2x FS and has a thermal effect of ±0.45% FS TEB for 0.25% accuracy and ±0.30% FS TEB for 0.10% accuracy. It is suitable for mounting below the monitored point and has electrical connections in the form of a wire pigtail.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Supply Voltage
10-33 VDC
(Instrument-Sensor) Temperature Range
-4 - 176°F/-20 - 80°C
Component
Miniature Submersible Level Transmitter
(Instrument-Sensor) Supply Voltage
8-33 VDC
Manufacturer
Dwyer Instruments
Features
Slender 0.63˝ (16 mm) diameter design fits in narrow openings
Constructed for years of trouble free service with welded 316 SS body and 316 SS nose cap
Body top is 316 SS and tapered to prevent damage or snares when pulling the unit out of the installation
Low power voltage output models are ideal for remote level monitoring with rechargeable battery and solar panel
Maintenance free filter on vent tube eliminates particulate water droplets from entering the transducer
Incorporates lightning and surge protection, eliminating both power supply surges and lightning ground strike transients
