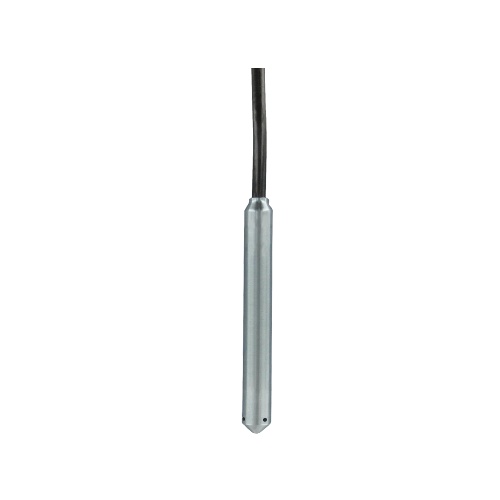

Dwyer MBLT-2SB-IVPF-150-170 Miniature Submersible Level Transmitter
Normally In Stock
Code: 572488
Dwyer MBLT-2SB-IVPF-150-170 - Mini submersible level transmitter, .10% accuracy, surge protection, 150' range, 4-20mA output, 170' of vented polyurethane cable.
Condition: New
Usually ships Same Day or Next Day$1749.83
Sale Price
$1458.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer MBLT-2SB-IVPF-150-170 is a miniature submersible level transmitter suitable for monitoring compatible liquids. It has a temperature range of -4 to 176°F, with an accuracy of ±0.25% or ±0.10% FS. Its power requirement is 10 to 33 VDC for current output and 8 to 33 VDC for voltage output. It offers a fast response time of under 50 ms and features a 4 to 20 mA DC 2-wire output signal. With a pressure limit of 2x FS, it can withstand harsh conditions. The compact transmitter is easy to mount and comes with surge and lightning protection for enhanced durability.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Supply Voltage
10-33 VDC
(Instrument-Sensor) Temperature Range
-4 - 176°F/-20 - 80°C
Component
Miniature Submersible Level Transmitter
(Instrument-Sensor) Supply Voltage
8-33 VDC
Manufacturer
Dwyer Instruments
Features
Slender 0.63˝ (16 mm) diameter design fits in narrow openings
Constructed for years of trouble free service with welded 316 SS body and 316 SS nose cap
Body top is 316 SS and tapered to prevent damage or snares when pulling the unit out of the installation
Low power voltage output models are ideal for remote level monitoring with rechargeable battery and solar panel
Maintenance free filter on vent tube eliminates particulate water droplets from entering the transducer
Incorporates lightning and surge protection, eliminating both power supply surges and lightning ground strike transients
