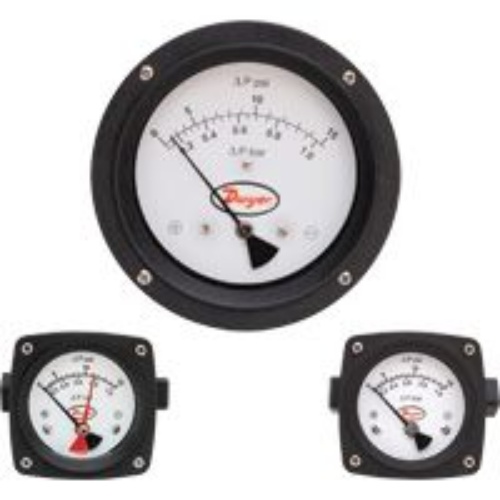

Dwyer PTGD-SC09A Differential Pressure Piston-Type Gauge
Normally In Stock
Code: 572481
Dwyer PTGD-SC09A - Differential piston gauge, in-line connections, range 0-60 psid.
Condition: New
Usually ships Same Day or Next Day$821.86
Sale Price
$684.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer PTGD-SC09A is a piston-type gauge designed for measuring differential pressure. It has an accuracy of ±2% FS and can be used with compatible gases and liquids. The gauge body and piston are made of either aluminum or 316 SS, and the wetted material includes a 302 SS spring and Buna-N seals. It can be mounted in any position and has a pressure limit of 3000 psi for aluminum body and 6000 psi for SS body. The process connection is 1/4" female NPT, with back or bottom connections available. The gauge comes in dimensions of 2.5" or 4.5" and has an acrylic window.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Differential Pressure Gauge
(Instrument-Sensor) Temperature Range
176°F/80°C
(Instrument-Sensor) Type
Piston Type
(Instrument-Sensor) Measurement Accuracy
2.0%
Manufacturer
Dwyer Instruments
Features
Rugged, weather and corrosive proof design supports use in harsh environments
Over-protection range depending on model, up to 6000 psig (400 bar) allows high-pressure applications
Flexibility of connection selection fits the most sophisticated designs
