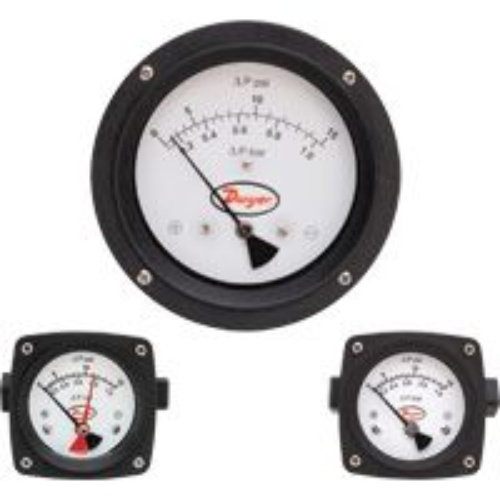

Dwyer PTGD-AC09A Differential Pressure Piston-Type Gauge
Normally In Stock
Code: 572457
Dwyer PTGD-AC09A - Differential piston gauge, in-line connections, range 0-60 psid.
Condition: New
Usually ships Same Day or Next Day$457.16
Sale Price
$380.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer PTGD-AC09A is a piston-type differential pressure gauge suitable for use with compatible gases and liquids. With a temperature rating of up to 176°F (80°C) and an accuracy of ±2% FS, this gauge can be mounted in any position. It features various wetted materials options, a pressure limit of up to 6000 psi (413 bar), and 1/4" female NPT end connections. Available in 2.5" (63 mm) or 4.5" (115 mm) dimensions, it comes with an acrylic window for viewing pressure measurements.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Differential Pressure Gauge
(Instrument-Sensor) Temperature Range
176°F/80°C
(Instrument-Sensor) Type
Piston Type
(Instrument-Sensor) Measurement Accuracy
2.0%
Manufacturer
Dwyer Instruments
Features
Rugged, weather and corrosive proof design supports use in harsh environments
Over-protection range depending on model, up to 6000 psig (400 bar) allows high-pressure applications
Flexibility of connection selection fits the most sophisticated designs
