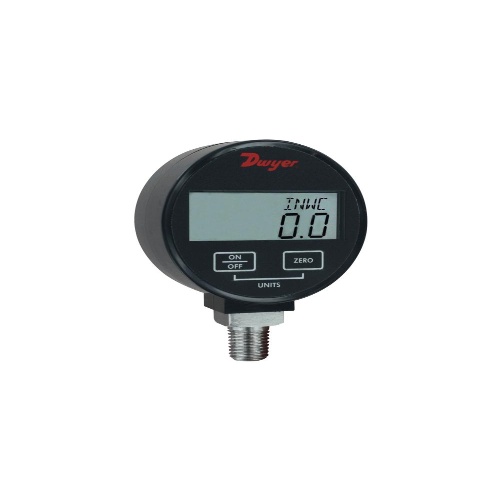

Dwyer DPGW-07 Digital Pressure Gauge With 1% Accuracy
Normally In Stock
Code: 571953
Dwyer DPGW-07 - Digital pressure gauge, range 0 to 50 psi, selectable engineering units: 50.00 psig, 3.515 kg/cm², 3.447 bar, 101.8" Hg, 115.3 ft w.c., 344.7 kPa, 800 oz/in², 1384" w.c., 3447 mbar, 3515 cm w.c., 2586 mm Hg, 0.02 psi resolution.
Condition: New
Usually ships Same Day or Next Day$202.02
Sale Price
$168.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPGW-07 is a digital pressure gauge with 1% accuracy. It has a temperature range of 30 to 120°F (-1 to 49°C) and a ±1.0% F.S. accuracy. It operates on a 9 V alkaline battery and has an ABS plastic housing. The DPGW variant is suitable for liquids and compatible gases. The gauge has a 4-digit LCD display, uses 316L SS wetted material, and has a pressure limit of 2X the pressure range. It has a 1/4" male NPT process connection, measures 2.62" OD x 1.52" deep, and features a 20 minute auto shut-off.
Specifications
Component
Digital Pressure Gauge
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Application
Air
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Supply Voltage
9 V Battery
(Instrument-Sensor) Temperature Range
30 - 120°F/-1 - 49°C
Manufacturer
Dwyer Instruments
Features
Push-button zero reduces installation and service time
High accuracy provides exceptional measurement for minimizing costly out of specification conditions
Selectable unit button provides reading in easily recognizable units
Well-suited gage for compatible gas (DPGA) or liquid (DPGW) applications specifying simple operation and accuracy
