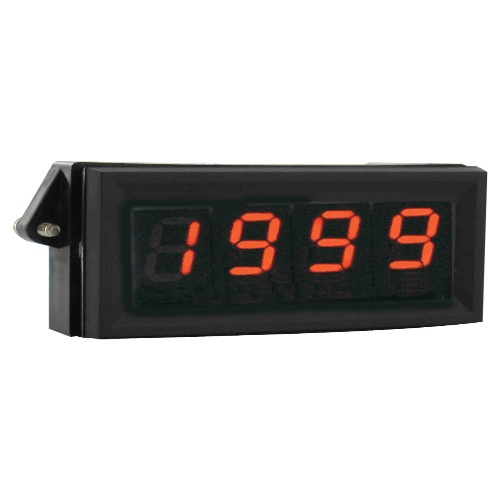

Dwyer DPMA-402P LCD Digital Process Meter
Normally In Stock
Code: 571621
Dwyer DPMA-402P - LCD Digital panel meter with power engineering units, loop powered 4 to 20 mA, red segments.
Condition: New
Usually ships Same Day or Next Day$237.82
Sale Price
$198.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPMA-402P is an LCD Digital Process Meter that measures temperatures from 32 to 122°F (0 to 50°C) with an accuracy of ±(0.05% FS + 1 count). It has adjustable zero and span adjustments (±1999 counts) and a voltage input of either powered by control loop or 12VDC/24VDC. The meter offers snap-in panel mount or clamp mounting options and features a 3-1/2 digit, 1" H display with screw terminals for connection. It has selectable engineering units and a conversion rate of 3 per second. The meter also has automatic polarity, a 10-minute warm-up time, and a backlight power supply of 24VDC @ 35mA.
Specifications
Component
Digital Panel Meter
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
(Instrument-Sensor) Measurement Accuracy
0.05%
Manufacturer
Dwyer Instruments
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
