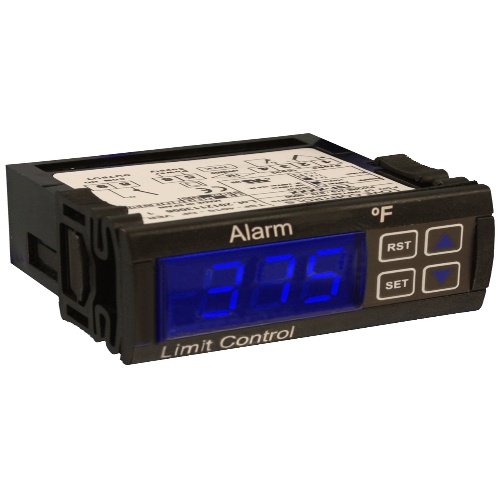

Dwyer TSF-4041-MDF Thermocouple Limit Control
Normally In Stock
Code: 571148
Dwyer TSF-4041-MDF - Limit Control Temp, Type J/K Input, 24 VAC/VDC, °C
Condition: New
Usually ships Same Day or Next Day$155.63
Sale Price
$129.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer TSF-4041-MDF is a thermocouple limit control used for temperature monitoring and control. It has a temperature range of 32 to 150°F (0 to 65°C) for ambient conditions and -4 to 176°F (-20 to 80°C) for storage. The control has an accuracy of ±1% FS and a resolution of 1°. It can operate on 115 VAC, 230 VAC, 12 VAC/VDC, or 24 VAC/VDC power. The output is a SPDT relay rated 16 A @ 240 VAC resistive. The control is equipped with a 3-digit, red display with 1/2" (12.7 mm) digits and plus sign. It can accept Type J, K, or S thermocouples as input. The control has nonvolatile memory, an IP64 (NEMA 3R) front panel rating, and a probe range of 32 to 999°F (0 to 700°C) for Type J thermocouple or 32 to 999°F (0 to 999°C) for Type K or S thermocouples. The control operates in ON/OFF mode and has manual/automatic reset options. It has a horsepower rating of 1 HP and consumes 4 VA of power.
Specifications
(Instrument-Sensor) Supply Voltage
230 VAC
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Supply Voltage
115 VAC
(Instrument-Sensor) Temperature Range
Storage: -4 - 176°F/-20 - 80°C
(Instrument-Sensor) Supply Voltage
24 VAC/DC
(Instrument-Sensor) Supply Voltage
12 VAC/DC
Component
Thermocouple
Sub Component
Thermocouple Limit Control
(Instrument-Sensor) Temperature Range
Ambient: 32 - 150°F/0 - 65°C
Manufacturer
Dwyer Instruments
Features
The Series TSF Thermocouple FM Approved Limit Control provides audible alarm status along with a robust 16 amp relay output
Unit allows the user to easily select automatic or manual reset along with 13 other parameters
The TSF series has a built in reset button on the front panel or can accept an external reset.
