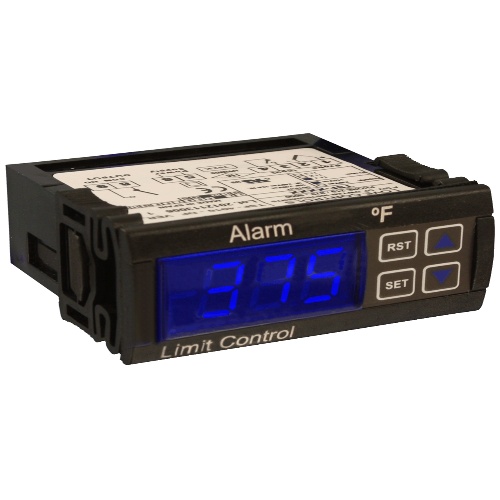

Dwyer TSF-4021-MDF Thermocouple Limit Control
Normally In Stock
Code: 571136
Dwyer TSF-4021-MDF - Limit Control Temp, Type J/K Input, 230V, °C
Condition: New
Usually ships Same Day or Next Day$138.95
Sale Price
$115.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer TSF-4021-MDF is a Thermocouple Limit Control ideal for monitoring and maintaining temperature within a range of 32 to 150°F (0 to 65°C) for ambient conditions, and -4 to 176°F (-20 to 80°C) for storage. It offers ±1% FS accuracy, a 3-digit red display, SPDT relay output rated 16 A @ 240 VAC resistive, and a power consumption of 4 VA. It operates on 115 VAC, 230 VAC, 12 VAC/VDC, or 24 VAC/VDC power supply depending on the model. The control type is ON/OFF with manual/automatic reset, and it has a front panel rating of IP64 (NEMA 3R). Compatible with Type J, K, or S thermocouples, it has a probe range of 32 to 999°F (0 to 700°C) for Type J thermocouples and 32 to 999°F (0 to 999°C) for Type K or S thermocouples. The memory is nonvolatile, and it boasts a 1 HP horsepower rating.
Specifications
(Instrument-Sensor) Supply Voltage
230 VAC
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Supply Voltage
115 VAC
(Instrument-Sensor) Temperature Range
Storage: -4 - 176°F/-20 - 80°C
(Instrument-Sensor) Supply Voltage
24 VAC/DC
(Instrument-Sensor) Supply Voltage
12 VAC/DC
Component
Thermocouple
Sub Component
Thermocouple Limit Control
(Instrument-Sensor) Temperature Range
Ambient: 32 - 150°F/0 - 65°C
Manufacturer
Dwyer Instruments
Features
The Series TSF Thermocouple FM Approved Limit Control provides audible alarm status along with a robust 16 amp relay output
Unit allows the user to easily select automatic or manual reset along with 13 other parameters
The TSF series has a built in reset button on the front panel or can accept an external reset.
