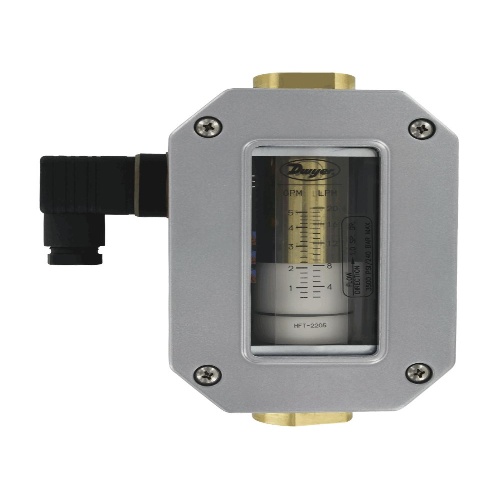

Dwyer HFT-2440 In-Line Flow Monitor
Normally In Stock
Code: 570572
Dwyer HFT-2440 - In-line flow transmitter, range 4-40 GPM (15-151 LPM) water, 1" female NPT.
Condition: New
Usually ships Same Day or Next Day$2547.29
Sale Price
$2122.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer HFT-2440 is an in-line flow monitor designed for measuring the flow of compatible gases or liquids. With a temperature range of 240°F (116°C) and an accuracy of ±2% FS, it ensures precise readings. Its wetted material options include aluminum, brass, or 303 stainless steel, and it has a pressure limit ranging from 600 psig (41 bar) to 6000 psig (413 bar) depending on the model. The monitor has a repeatability of ±1% FS and can handle liquids with a maximum viscosity of 500 SSU.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Flow Monitor
(Instrument-Sensor) Type
In-Line Flow Monitor
(Instrument-Sensor) Temperature Range
240°F/116°C
(Instrument-Sensor) Measurement Accuracy
2.0%
Manufacturer
Dwyer Instruments
Features
Provides analog output to monitor application flow and integral direct reading scale to provide local indication of flow rate
Increased application versatility with no inlet or outlet straight plumbing requirement and can be mounted horizontally, vertically, or inverted
Outdoor or harsh environment installation capable with rugged cast aluminum construction and NEMA 4X (IP65) enclosure
