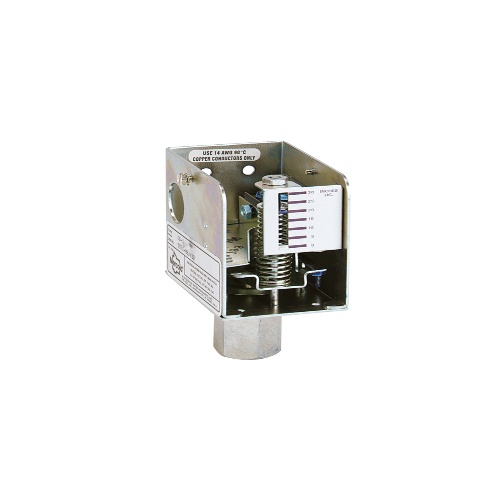

Dwyer CS-10 Diaphragm Pressure Switch is a versatile component designed for a wide temperature range of -30 to 150°F (-35 to 66°C). With a general-purpose enclosure rating, screw terminal electrical connections, and the ability to be mounted in any position, it offers flexibility for various applications. The switch features nylon reinforced Buna-N and steel construction for reliable performance. It has a pressure limit of 30 psig for ranges 1, 3, and 10, 50 psig for range 30, and 175 psig for range 150. The switch type is SPDT snap switch, and the set point can be adjusted using the internal screw. It has a 1/4" female NPT process connection, while the electrical rating is 15 A @ 120 VAC and 8 A @ 240 VAC. The conduit connection is a 1/2" hole for conduit hub, and the deadband information can be found on the ordering page.
