Code: 570054

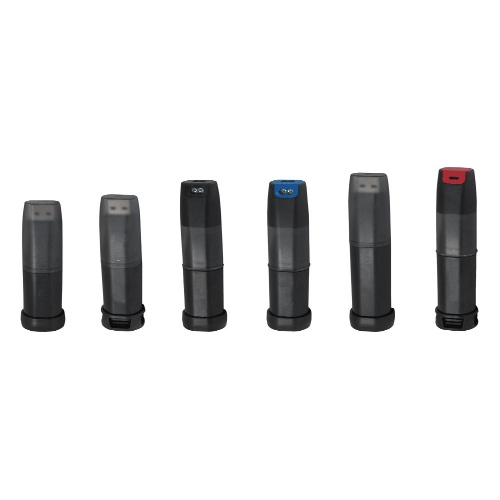

Dwyer DW-USB-5 Compact Usb Data Logger
Normally In Stock
Dwyer DW-USB-5 - Compact USB data logger, carbon monoxide input.
Condition: New
Usually ships Same Day or Next Day$321.47
Sale Price
$267.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DW-USB-5 is a compact USB data logger that comes with a 3.6V 1/2 AA lithium metal battery which is included and user-replaceable. The housing is made of an ABS plastic blend. It has a memory capacity of 16,382 temperature and RH readings, 32,764 readings for voltage, current, and thermocouple, and 32,510 readings for carbon monoxide. The sampling rate is selectable, ranging from 10 seconds to 12 hours for temperature and RH models, 1 second to 12 hours for voltage, current, and thermocouple models, and 10 seconds to 5 minutes for CO models. It has a USB port interface and is compatible with Windows® 7, Windows® 8, and Windows® 10. The device also features programmable high/low alarms and operates in a stop-on-memory-full sampling mode.
Specifications
(Instrument-Sensor) Supply Voltage
AA Battery
Component
Data Logger
(Instrument-Sensor) Type
Compact USB
Manufacturer
Dwyer Instruments
Features
Meets IP67 standards when the protective cap is fitted
All in one unit plugs into PC with no cable required
LED status indicators for visual confirmation
Optional integral LCD display for local indication
