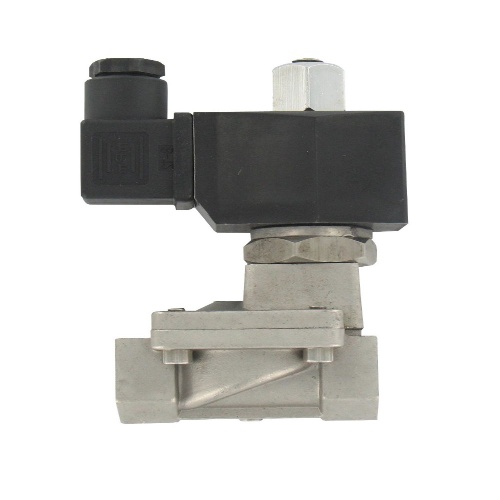

Dwyer SSV-S3F1 is a 2-way guided solenoid valve designed for use with compatible gases and liquids. It has a process temperature range of up to 248°F and operates on a standard 110 VAC power source. The valve is housed in a NEMA 13 rated enclosure and features a DIN electrical connection. It can be mounted in any orientation, with the preferred position being the solenoid valve above the unit. The wetted material is 316 SS for the body, 304 SS for the spring, and a fluoroelastomer seal. It has a pressure limit of 174 psi and utilizes a female NPT process connection. The valve comes in a nylon material and is available in various line sizes from 1/8 to 2" NPT. The maximum operating pressure ranges from 0 to 87 psi for smaller sizes and 7.3 to 116 psi for larger sizes. The valve operates as a normally open configuration.
