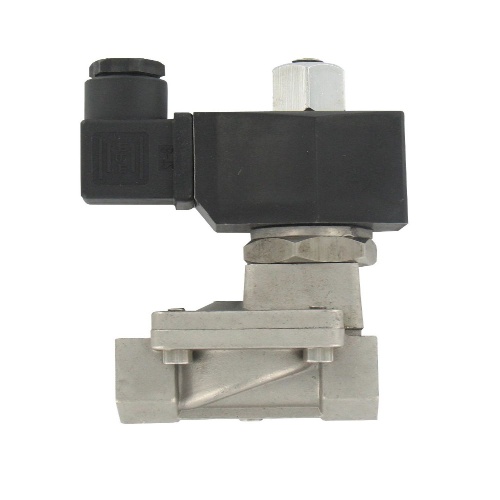

Dwyer SSV-S2F3 is a 2-way guided solenoid valve suitable for use with compatible gases and liquids. It has a temperature range of 32 to 248°F and can be operated with standard 110 VAC power or optional 220 VAC or 24 VDC. With a NEMA 13 enclosure rating and DIN electrical connections, it can be mounted in any position, preferably with the solenoid vertically above the valve. The wetted material is 316 SS for the body, 304 SS for the spring, and the seal is made of fluoroelastomer. It has a pressure limit of 174 psi and a process connection of female NPT. Available in line sizes ranging from 1/8 to 2" NPT, the maximum operating pressure depends on the line size. It operates as a normally open valve.
