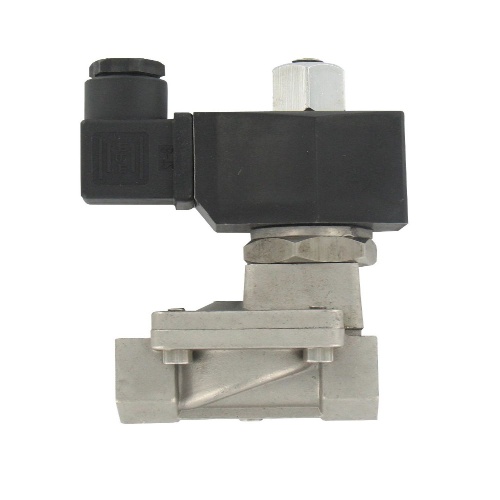

Dwyer SSV-S2F2 is a 2-way guided solenoid valve designed for use with compatible gases and liquids. It has a temperature range of 32 to 149°F (0 to 65°C) and a process temperature limit of 248°F (120°C). The valve operates on a standard 110 VAC power requirement, with optional 220 VAC or 24 VDC. It has a NEMA 13 (IP54) enclosure rating and DIN electrical connections. The wetted material is 316 SS for the body, 304 SS for the spring, and Fluoroelastomer for the seal. The valve is suitable for mounting in any orientation, preferably with the solenoid vertically above the valve. It has a pressure limit of 174 psi (12 bar) and a female NPT process connection. The valve is made of nylon material and is available in line sizes ranging from 1/8 to 2" NPT. The maximum operating pressure varies from 0 psi (0 bar) to 87 psi (6 bar) for sizes 1/8 to 1/4" and from 7.3 psi (0.5 bar) to 116 psi (8 bar) for sizes 3/8 to 2". The valve operates in a normally open (NO) configuration.
