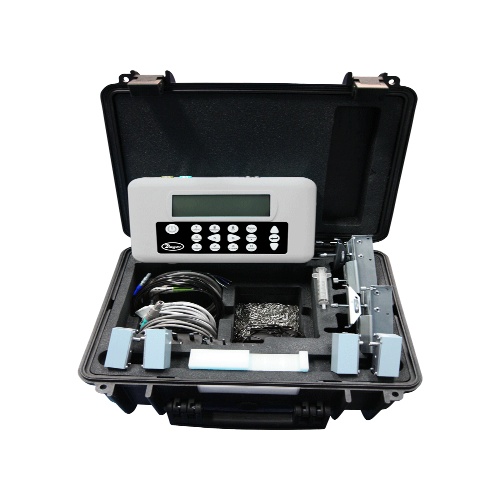

Dwyer PUF-1001 Portable Ultrasonic Flowmeter Kit
Normally In Stock
Code: 569367
Dwyer PUF-1001 - Portable ultrasonic flowmeter Type A/B, 0.5 to 78" (13 to 2000 mm) pipe size, transducers with data logger.
Condition: New
Usually ships Same Day or Next Day$22269.62
Sale Price
$18558.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer PUF-1001 is a Portable Ultrasonic Flowmeter Kit with a temperature range of -4 to 275°F (-20 to 135°C). It offers high accuracy readings of ±0.5% to 2% for flow rates above 0.66 ft/s (0.2 m/s) and pipe ID above 3 in (75 mm). The flowmeter has a quick response time of less than 500 ms and a wide range of 0.33 to 65.62 ft/s (0.1 to 20 m/s). It is powered by a 5-cell NiMH battery with a continuous operation time of 20 hours and can be recharged in 6.5 hours. This flowmeter has an IP51 enclosure rating for the transducers and IP54 for the converter, ensuring durability. It offers multiple electrical connections, including analog and pulse outputs. The flowmeter is suitable for use with homogeneous liquids without air bubbles capable of ultrasonic wave propagation. It consumes 10.5 W of power and features a 240 x 64 pixel graphic display with a backlight and multiple language options. The Dwyer PUF-1001 has a repeatability of ±0.5% and is made of flame retardant injection molded ABS plastic. It offers USB and RS-232 communication options and is compatible with various pipe materials and linings. It has a permissible air content of less than 3% and offers accurate readings even in the presence of turbidity. The flowmeter comes with a power adapter, making it suitable for use worldwide.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Application
Liquid
Component
Flow Meter
(Instrument-Sensor) Type
Portable Ultrasonic Flowmeter Kit
(Instrument-Sensor) Temperature Range
-4 - 275°F/-20 - 135°C
(Instrument-Sensor) Measurement Accuracy
3.0%
Manufacturer
Dwyer Instruments
(Instrument-Sensor) Measurement Accuracy
0.50 - 2%
(Instrument-Sensor) Measurement Accuracy
6.0%
Features
Non-invasive pipe measurement
Compact and lightweight
Incorporate the latest electronics and signal processing technologies realizing high performance and easy operation
Ideal for on-the-go flow monitoring, capable of 20 hours continuous operation with built-in, rechargeable battery
Easy to read graphic display with convenient backlight for visual comfort
Efficient layout of the function keys for easy to use programming
PUB features rugged carrying case with molded foam inserts
PUF boasts an IP67 rated case to hold and protect all equipment conveniently
