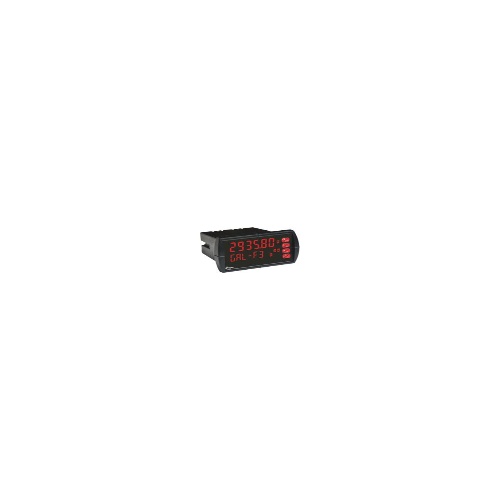

Dwyer PPM-220 Dual Line Configurable Panel Meter
Normally In Stock
Code: 569362
Dwyer PPM-220 - Pulse panel meter, 12-24 VDC, 2 relays, no transmitter.
Condition: New
Usually ships Same Day or Next Day$1298.72
Sale Price
$1082.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer PPM-220 is a versatile panel meter with a temperature range of -40 to 149°F for operating and -40 to 185°F for storage. It offers high accuracy of ±0.03% and a wide input range of 0 to 20 mA, 4 to 20 mA, 0 to 5V, or ±10V. The meter has dual-line 6-digit display, NEMA 4X enclosure rating, and removable screw terminal blocks for easy installation. It is compatible with both AC and DC power sources and supports various output signals. The meter also features programmable time delays, multiple relay options, and comes with free programming software.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Supply Voltage
12-24 VDC
(Instrument-Sensor) Temperature Range
Storage: -40 - 185°F/-40 - 85°C
(Instrument-Sensor) Measurement Accuracy
0.03%
(Instrument-Sensor) Temperature Range
Operating: -40 - 149°F/-40 - 65°C
(Instrument-Sensor) Supply Voltage
85-265 VAC
(Instrument-Sensor) Supply Voltage
90-265 VDC
Sub Component
Dual Line Configurable Panel Meter
Component
Pulse Panel Meter
Manufacturer
Dwyer Instruments
Features
NEMA 4X / IP65 front panel
Powers the transmitter / flowmeter
Dual line 6 digit display
Free USB based programming software
Display rate and total at the same time
Two or four relays and isolated 4-20 mA output options
