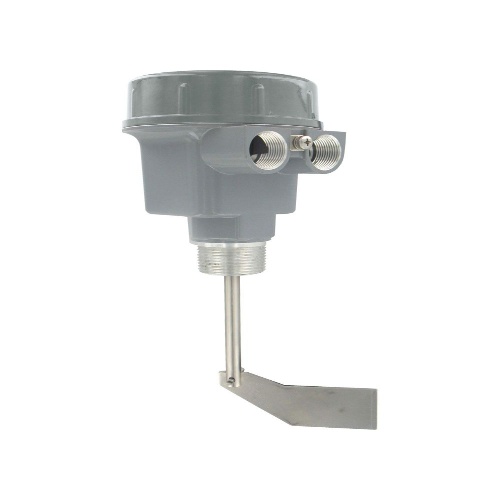

Dwyer PLS2-EX1 Paddle Level Switch
Normally In Stock
Code: 569310
Dwyer PLS2-EX1 - 8.5" shaft extension, rigid rod type
Condition: New
Usually ships Same Day or Next Day$414.20
Sale Price
$345.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer PLS2-EX1 Paddle Level Switch is designed for dry powder or bulk materials with a minimum density of 6 lb/ft3. It has a temperature range of -13 to 176°F and can be powered by 115 VAC, 230 VAC, or 24 VDC. The switch is housed in a NEMA 4 rated enclosure and has a pressure limit of 11.6 psi. It features a 304 SS paddle, SPDT micro switch, and 1-1/4" male NPT process connection. Mounting can be done on the side or top.
Specifications
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) Supply Voltage
230 VAC
(Instrument-Sensor) Application
Bulk Solids
Component
Level Switch
(Instrument-Sensor) Temperature Range
Ambient: -4 - 140°F/-20 - 60°C
(Instrument-Sensor) Type
Paddle
(Instrument-Sensor) Application
Dry Powder
(Instrument-Sensor) Temperature Range
Process: -13 - 176°F/-25 - 80°C
(Instrument-Sensor) Supply Voltage
115 VAC
Manufacturer
Dwyer Instruments
Features
Incorporated in the design of the PLS is a magnetic drive that is time proven by decades of use in our Mark Series valve position indicator product line
A 1 rpm synchronous motor rotates the paddle utilizing a magnetic drive
As product builds up the paddle is impeded from moving and the resulting motor torque activates the output switches and stops the motor
A spring mechanism reactivates the motor and returns the switches to normal state when the product no longer impedes the paddle rotation
Standard construction is weatherproof with explosion-proof optional, and the unit can be side or top mounted
The PLS is designed with the industry standard 1-1/4˝ male NPT connection and mounting flanges.
