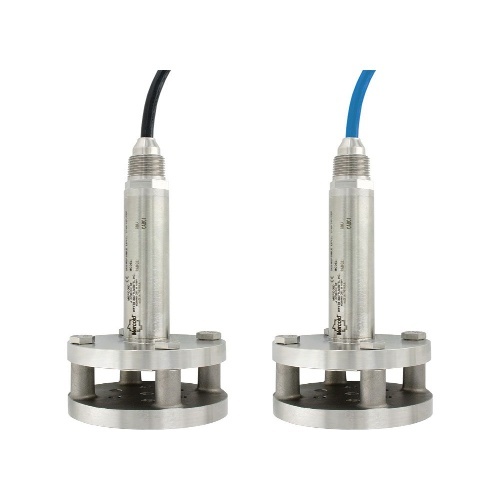

Dwyer PBLT2-25-100 Submersible Level Transmitter
Normally In Stock
Code: 569275
Dwyer PBLT2-25-100 - Submersible level transmitter, range 25 psi (57.70 ft wc) [17.58 m wc], 100 ft (30.5 m) ETFE cable.
Condition: New
Usually ships Same Day or Next Day$2014.60
Sale Price
$1678.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer PBLT2-25-100 is a submersible level transmitter that accurately measures levels in compatible liquids. It has a temperature range of 0 to 200°F (-18 to 93°C) and features an accuracy of ±0.25% FS. The transmitter requires a power input of 13 to 30 VDC and has a fast response time of 50 msec. Its IP68 rated enclosure allows for submersion up to 20 meters for 24 hours. The output signal is a 4 to 20 mA DC, and it is designed to be suspended in the tank below the level being measured. The body is made of 316 SS, 316L SS, and it utilizes a polyether polyurethane or ETFE cable with fluoroelastomer seals. It has a pressure limit of 2X FS and provides electrical protection against lightning and surge for the PBLT2 model.
Specifications
Component
Submersible Level Transmitter
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) IP Protection
IP68
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Temperature Range
0 - 200°F/-18 - 93°C
(Instrument-Sensor) Supply Voltage
13-30 VDC
(Instrument-Sensor) Temperature Range
-4 - 176°F/-20 - 80°C
(Instrument-Sensor) Temperature Range
-4 - 149°F/-20 - 65°C
(Instrument-Sensor) Supply Voltage
10-28 VDC
Manufacturer
Dwyer Instruments
Features
Meet application requirements with durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids
Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models
Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
Peace of mind with UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier
Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility
Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation
Minimal downtime with standard 72 hour lead time
