Code: 569265

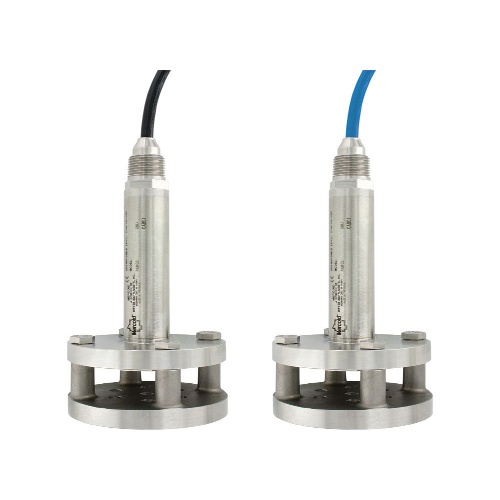

Dwyer PBLT2-10-80-PU Submersible Level Transmitter
Normally In Stock
Dwyer PBLT2-10-80-PU - Submersible level transmitter, range 10 psi (23.09 ft wc) [7.04 m wc], 80 ft (24.4 m) polyurethane cable.
Condition: New
Usually ships Same Day or Next Day$1271.71
Sale Price
$1059.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer PBLT2-10-80-PU is a submersible level transmitter suitable for measuring liquids. It features a temperature range of 0 to 200°F, an accuracy of ±0.25% FS, and a response time of 50 msec. It requires a power supply of 13 to 30 VDC, and has an IP68 enclosure rating. The output signal is 4 to 20 mA DC, and it can be mounted below the level being measured. The wetted materials include 316 SS and 316L SS. It has a pressure limit of 2X FS and is suitable for hazardous locations.
Specifications
Component
Submersible Level Transmitter
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) IP Protection
IP68
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Temperature Range
0 - 200°F/-18 - 93°C
(Instrument-Sensor) Supply Voltage
13-30 VDC
(Instrument-Sensor) Temperature Range
-4 - 176°F/-20 - 80°C
(Instrument-Sensor) Temperature Range
-4 - 149°F/-20 - 65°C
(Instrument-Sensor) Supply Voltage
10-28 VDC
Manufacturer
Dwyer Instruments
Features
Meet application requirements with durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids
Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models
Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
Peace of mind with UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier
Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility
Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation
Minimal downtime with standard 72 hour lead time
