Code: 569262

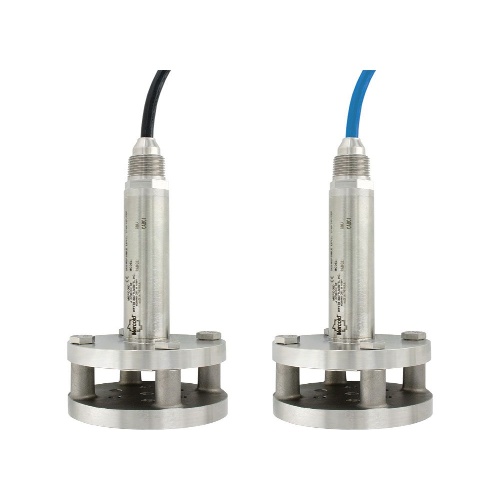

Dwyer PBLT2-10-70 Submersible Level Transmitter
Normally In Stock
Dwyer PBLT2-10-70 - Submersible level transmitter, range 10 psi (23.09 ft wc) [7.04 m wc], 70 ft (21.3 m) ETFE cable.
Condition: New
Usually ships Same Day or Next Day$1706.08
Sale Price
$1421.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer PBLT2-10-70 is a submersible level transmitter with a temperature range of 0 to 200°F, providing an accurate measurement of ±0.25% FS. It requires a power supply of 13 to 30 VDC and has a fast response time of 50 msec. With an IP68 enclosure rating and 20m submersion capability, it is suitable for hazardous locations and can be mounted suspended in a tank. The wetted materials include 316 SS and 316L SS for the body, with cable options of polyether polyurethane or ETFE. The output signal is a 4 to 20 mA DC, two-wire connection, and it is compatible with various liquids. The PBLT2 provides electrical protection from lightning and surge, while the PBLTX does not.
Specifications
Component
Submersible Level Transmitter
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) IP Protection
IP68
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Temperature Range
0 - 200°F/-18 - 93°C
(Instrument-Sensor) Supply Voltage
13-30 VDC
(Instrument-Sensor) Temperature Range
-4 - 176°F/-20 - 80°C
(Instrument-Sensor) Temperature Range
-4 - 149°F/-20 - 65°C
(Instrument-Sensor) Supply Voltage
10-28 VDC
Manufacturer
Dwyer Instruments
Features
Meet application requirements with durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids
Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models
Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
Peace of mind with UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier
Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility
Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation
Minimal downtime with standard 72 hour lead time
