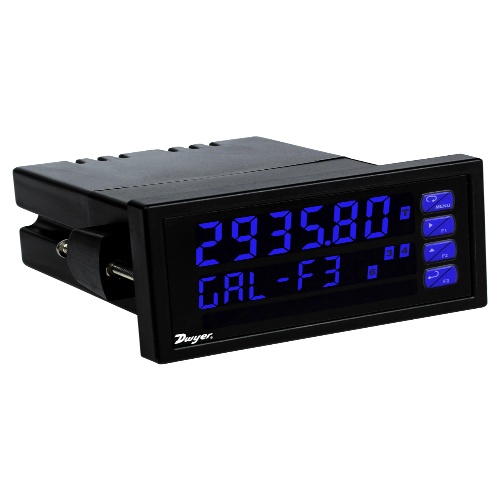

Dwyer MPM-201 Dual Line Configurable Panel Meter
Normally In Stock
Code: 569193
Dwyer MPM-201 - Multi panel meter, 12-24 VDC, no relays, 4-20 mA transmitter.
Condition: New
Usually ships Same Day or Next Day$1254.91
Sale Price
$1045.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer MPM-201 is a dual line configurable panel meter with a wide temperature range of -40 to 149°F. It offers high accuracy of ±0.03% and has multiple power options. The meter has a NEMA 4X enclosure rating and accepts various electrical connections. It provides a 4 to 20 mA output signal and features a dual-line 6-digit display. The input can range from 0 to 20 mA, 4 to 20 mA, 0 to 5V, or ±10V. Additionally, it has programmable time delays and supports multiple relay types. The meter comes with free USB-based programming software.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Supply Voltage
12-24 VDC
(Instrument-Sensor) Temperature Range
Storage: -40 - 185°F/-40 - 85°C
(Instrument-Sensor) Measurement Accuracy
0.03%
(Instrument-Sensor) Temperature Range
Operating: -40 - 149°F/-40 - 65°C
(Instrument-Sensor) Supply Voltage
85-265 VAC
(Instrument-Sensor) Supply Voltage
90-265 VDC
Component
Multi Panel Meter
Sub Component
Dual Line Configurable Panel Meter
Manufacturer
Dwyer Instruments
Features
NEMA 4X / IP65 front panel
Powers the transmitter / flowmeter
Dual line 6 digit display
Free USB based programming software
Display rate and total at the same time
Two or four relays and isolated 4-20 mA output options
