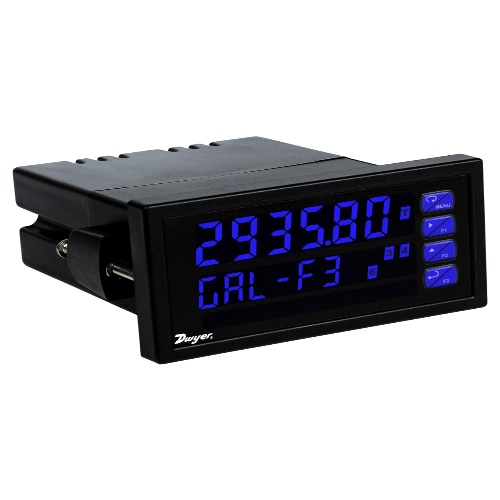

Dwyer MPM-120 Dual Line Configurable Panel Meter
Normally In Stock
Code: 569188
Dwyer MPM-120 - Multi panel meter, 85-265 VAC, 2 relays, no transmitter.
Condition: New
Usually ships Same Day or Next Day$1006.48
Sale Price
$838.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer MPM-120 is a dual line configurable panel meter with an operating temperature range from -40 to 149°F. It offers high accuracy of ±0.03% and accepts 0 to 20 mA, 4 to 20 mA, 0 to 5V, or ±10V inputs. The panel meter is compatible with various power requirements and includes removable screw terminal blocks for easy electrical connections. It features a dual-line 6-digit display with user-selectable decimal points and programmable time delays for each relay. The meter is housed in a NEMA 4X, IP65 rated enclosure and includes free USB-based programming software.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Supply Voltage
12-24 VDC
(Instrument-Sensor) Temperature Range
Storage: -40 - 185°F/-40 - 85°C
(Instrument-Sensor) Measurement Accuracy
0.03%
(Instrument-Sensor) Temperature Range
Operating: -40 - 149°F/-40 - 65°C
(Instrument-Sensor) Supply Voltage
85-265 VAC
(Instrument-Sensor) Supply Voltage
90-265 VDC
Component
Multi Panel Meter
Sub Component
Dual Line Configurable Panel Meter
Manufacturer
Dwyer Instruments
Features
NEMA 4X / IP65 front panel
Powers the transmitter / flowmeter
Dual line 6 digit display
Free USB based programming software
Display rate and total at the same time
Two or four relays and isolated 4-20 mA output options
