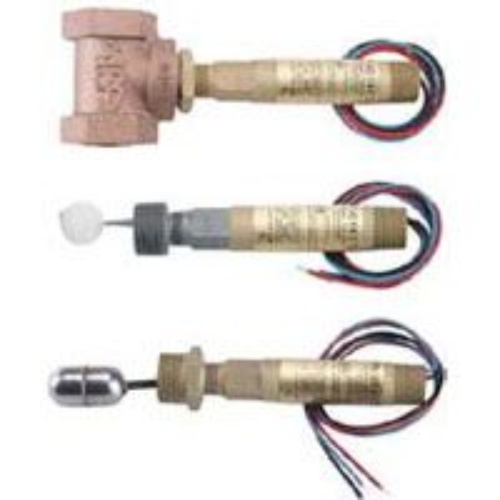

Dwyer L6EPS-S-D-3-S Flotect® Liquid Level Switch
Normally In Stock
Code: 569144
Dwyer L6EPS-S-D-3-S - L6EPS-SD3S FLOTECT LEVEL SW
Condition: New
Usually ships Same Day or Next Day$823.66
Sale Price
$686.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer L6EPS-S-D-3-S FLOTECT® Liquid Level Switch is a weatherproof and explosion-proof device suitable for liquids compatible with its wetted materials. It has a temperature range of -4 to 220°F (-20 to 105°C), with a high-temperature option up to 400°F (205°C). It is UL, CSA, ATEX, IECEx, and KC listed, meeting various industry standards. It features a SPDT snap switch, 1" process connection, and 3/4" conduit connection.
Specifications
(Instrument-Sensor) Application
Liquid
Component
Level Switch
(Instrument-Sensor) Temperature Range
High Temp: 400°F/205°C
(Instrument-Sensor) Hazardous Location Class
Class II - Groups E-G
(Instrument-Sensor) Type
Liquid
(Instrument-Sensor) Temperature Range
Standard: -4 - 220°F/-20 - 105°C
(Instrument-Sensor) Temperature Range
Ambient: -4 - 167°F/-20 - 75°C
(Instrument-Sensor) Temperature Range
Process: -4 - 220°F/-20 - 105°C
(Instrument-Sensor) Hazardous Location Class
Class I - Groups C And D
Manufacturer
Dwyer Instruments
Features
Compact design is built for years of trouble-free service
Simple and dependable operation with no mechanical linkage
Float lever pivoted within the body moves when the process liquid displaces the float and magnet on the opposite end of the float lever controls a second magnet on the switch actuating lever located in the switch housing
Leak proof lower body machined from bar stock
Side wall or direct tee mounting options available to act as an external float chamber
Weatherproof and explosion-proof body for demanding outdoor applications
Electrical assembly can be easily replaced without removing the unit from the installation so that the process does not have to be shut down
Sensitive to level changes of less than 1/2˝ (12 mm)
