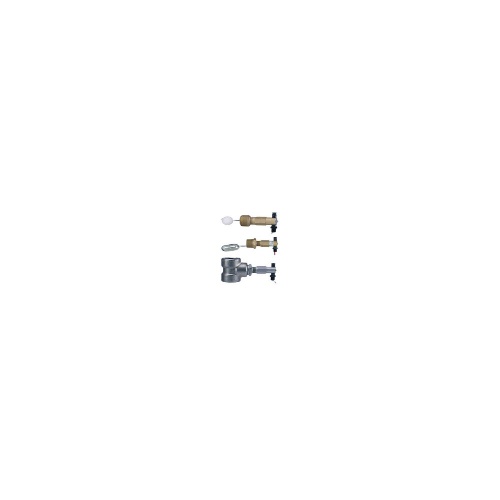

Dwyer L10-S-3-L is a mini-size level switch designed for use with compatible liquids. It has a temperature rating of 200°F and a weatherproof enclosure with a NEMA 4X rating. The electrical connections are 18 AWG, 19" long with a PVC jacket and are rated for 221°F. It can be mounted horizontally with an index arrow pointing down. The wetted materials include a solid polypropylene or 304 SS float, brass or 303 SS body, ceramic magnet, and 301 SS, 302 SS, or 316 SS lever arm, pin, and spring. The pressure limit can be found on the catalog page. The process connection is 1" male NPT standard, with options for different sizes. The electrical rating is 1.5 A @ 24 VDC resistive, 0.001 A @ 200 VDC resistive, 0.5 A @ 120 VAC. The switch type is SPST hermetically sealed reed switch, and it is field adjustable for NO or NC. The specific gravity can be found on the catalog page. It has a nylon switch enclosure.
