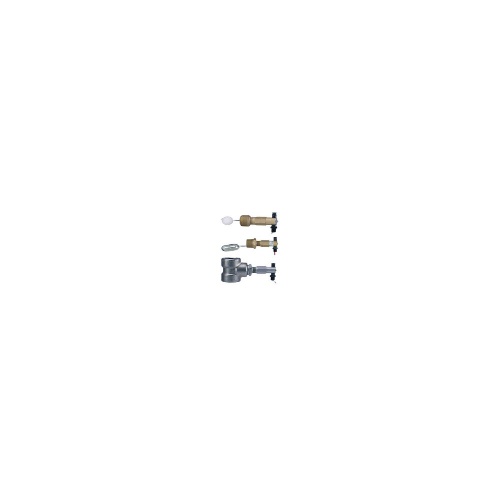

Dwyer L10-S-3-C is a weatherproof FLOTECT® MINI-SIZE LEVEL SWITCH designed for use with compatible liquids. It has a temperature rating of 200°F (93°C) and meets NEMA 4X (IP66) enclosure standards. The switch has an SPST hermetically sealed reed switch that is field adjustable for NO or NC operation. It has a 1.5 A @ 24 VDC resistive electrical rating and a 0.001 A @ 200 VDC resistive electrical rating. The switch features a solid polypropylene or 304 SS float, a brass or 303 SS body, and a ceramic magnet. The electrical connections are 18 AWG, 19" long, PVC jacketed cables with a temperature rating of 221°F (105°C). Mounting orientation is horizontal with the index arrow pointing down. The switch has various wetted materials, including 301 SS, 302 SS, and 316 SS for the lever arm, pin, spring, and other components. It has a 1" male NPT process connection, with options to change to 1-1/4", 1-1/2", or 2" models. The switch has a specific gravity range as specified in the catalog and a nylon switch enclosure.
