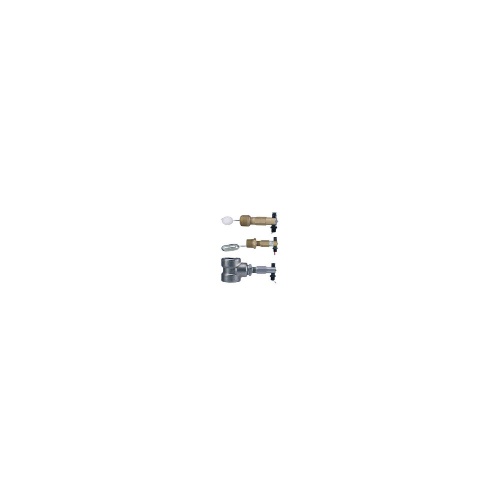

Dwyer L10-B-3-C Flotect® Mini-Size Level Switch
Normally In Stock
Code: 569112
Dwyer L10-B-3-C - Mini-size level switch, 304 SS spherical float, side wall mounting, max. pressure 350 psig (24.1 bar), min. S.G. 0.7.
Condition: New
Usually ships Same Day or Next Day$282.53
Sale Price
$235.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer L10-B-3-C FLOTECT® MINI-SIZE LEVEL SWITCH is a weatherproof, compact switch designed for 200°F (93°C) temperature applications. It has a 1" male NPT process connection and a 1.5 A @ 24 VDC electrical rating. The switch enclosure is made of nylon and it has a SPST hermetically sealed reed switch that is field adjustable for NO or NC. The wetted materials include solid polypropylene or 304 SS float, brass or 303 SS body, ceramic magnet, and various stainless steel components. It is compatible with a wide range of liquids and has a pressure limit specified in the catalog.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Application
Liquid
Component
Level Switch
(Instrument-Sensor) Type
Mini-Size
(Instrument-Sensor) Temperature Range
200°F/93°C
Manufacturer
Dwyer Instruments
Features
Long operating life with hermetically sealed, magnetically-actuated SPST reed switch, which is encapsulated in a polypropylene housing
Easily toggle between normally open (NO) or normally closed (NC) with no change in the electrical connection using simple field switch adjustment
Quick and low cost maintenance from easily replaceable switch without affecting installation
Great value and years of reliable liquid level control with top quality materials at a low cost
