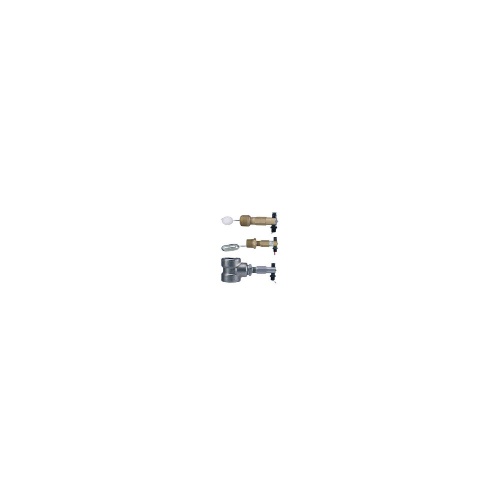

Dwyer L10-B-3-B Flotect® Mini-Size Level Switch
Normally In Stock
Code: 569111
Dwyer L10-B-3-B - Mini-size level switch, polypropylene spherical float, brass tee, max. pressure 250 psig (17.2 bar), min. S.G. 0.9.
Condition: New
Usually ships Same Day or Next Day$282.53
Sale Price
$235.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer L10-B-3-B is a FLOTECT® mini-size level switch designed for use with compatible liquids up to 200°F (93°C). It has a weatherproof enclosure with an enclosure rating of NEMA 4X (IP66) and comes with 18 AWG electrical connections. The switch is SPST hermetically sealed with a reed switch that is field adjustable for NO or NC. It has a 1.5A electrical rating and is made with durable materials such as polypropylene, brass, and ceramic. It has a pressure limit specified on the catalog page and is suitable for horizontal mounting with an index arrow pointing down. The switch enclosure is made of nylon.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Application
Liquid
Component
Level Switch
(Instrument-Sensor) Type
Mini-Size
(Instrument-Sensor) Temperature Range
200°F/93°C
Manufacturer
Dwyer Instruments
Features
Long operating life with hermetically sealed, magnetically-actuated SPST reed switch, which is encapsulated in a polypropylene housing
Easily toggle between normally open (NO) or normally closed (NC) with no change in the electrical connection using simple field switch adjustment
Quick and low cost maintenance from easily replaceable switch without affecting installation
Great value and years of reliable liquid level control with top quality materials at a low cost
