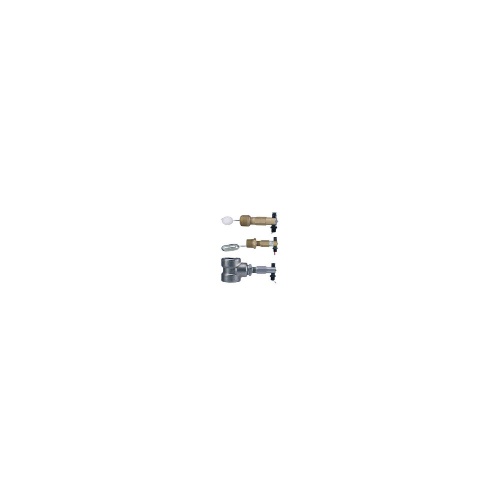

Dwyer L10-B-3-A Flotect® Mini-Size Level Switch
Normally In Stock
Code: 569110
Dwyer L10-B-3-A - Mini-size level switch, 304 SS cylindrical float, side wall mounting, max. pressure 200 psig (13.8 bar), min. S.G. 0.5.
Condition: New
Usually ships Same Day or Next Day$269.83
Sale Price
$224.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer L10-B-3-A FLOTECT® MINI-SIZE LEVEL SWITCH is a weatherproof switch designed to operate in temperatures up to 200°F. It has a 1" male NPT process connection and a 1.5 A electrical rating. The switch is made with solid polypropylene or 304 SS float, brass or 303 SS body, and ceramic magnet. The switch enclosure is made of nylon and is SPST hermetically sealed.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Application
Liquid
Component
Level Switch
(Instrument-Sensor) Type
Mini-Size
(Instrument-Sensor) Temperature Range
200°F/93°C
Manufacturer
Dwyer Instruments
Features
Long operating life with hermetically sealed, magnetically-actuated SPST reed switch, which is encapsulated in a polypropylene housing
Easily toggle between normally open (NO) or normally closed (NC) with no change in the electrical connection using simple field switch adjustment
Quick and low cost maintenance from easily replaceable switch without affecting installation
Great value and years of reliable liquid level control with top quality materials at a low cost
