Dwyer FSW2-DNPN-50 Free-Floating Level Switch
Normally In Stock
Code: 568974

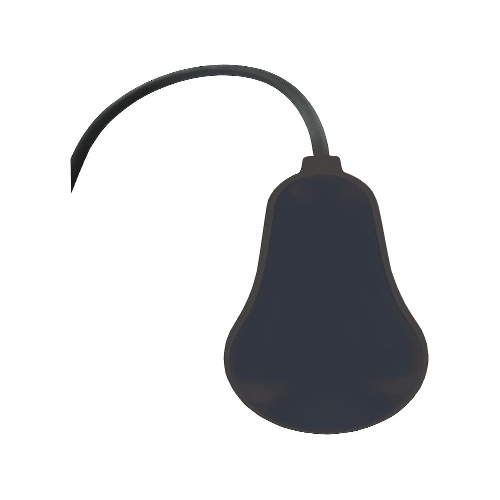

Dwyer FSW2-DNPN-50 - Free floating sewage water level switch, PVC cable, SPDT, 50 ft (15.24 m) cable
Condition: New
Usually ships Same Day or Next Day$221.08
Sale Price
$184.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer FSW2-DNPN-50 is a free-floating level switch designed for use with compatible liquids and slurries. With an enclosure rating of IP68, it can withstand temperatures ranging from 32 to 122°F (0 to 50°C) and pressures up to 29 psi (2 bar). It has an electrical rating of 10 (3) A @ 250 VAC and can be mounted vertically. The wetted materials are polypropylene for the enclosure and PVC for the cable. The switch type can be found on the model chart in the catalog.
Specifications
(Instrument-Sensor) IP Protection
IP68
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Component
Level Switch
(Instrument-Sensor) Type
Free-Floating
Manufacturer
Dwyer Instruments
Features
Body is free of any irregularities allowing substances to effortlessly glide off and consists of a double airtight chamber with high-pressure melted polypropylene re-injection sealing to ensure a perfect seal reducing maintenance events
High reliability with mercury-free, magnetic, mechanical internal design
Economical pricing with multiple option available for increased versatility
Seamless installation with self-counterweighted body and cable hangers to suit a variety of mounting applications
