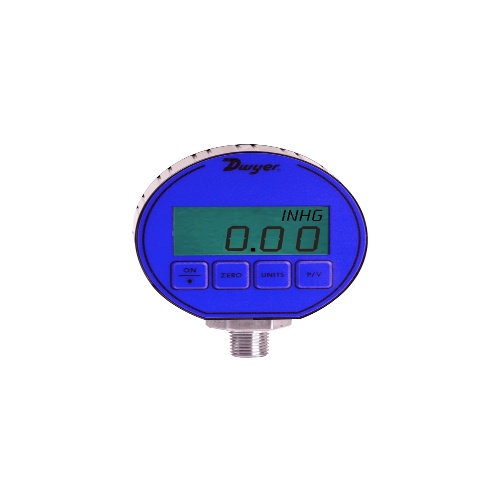

Dwyer DPG-004 Digital Pressure Gauge
Normally In Stock
Code: 568891
Dwyer DPG-004 - Digital pressure gauge, selectable engineering units: 50.00 psi, 3.515 kg/cm², 3.448 bar, 101.8" Hg, 115.4 ft w.c., 344.8 kPa, 800 oz/in², 1384" w.c., 3448 mbar, 3515 cm w.c., 2586 mm Hg.
Condition: New
Usually ships Same Day or Next Day$384.30
Sale Price
$320.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPG-004 is a digital pressure gauge with an accuracy of ±0.25% FS and a temperature range of 0 to 130°F. It operates on (2) AAA alkaline batteries, has a NEMA 4/4X enclosure rating, and features a 4-digit display. The gauge is compatible with liquids and combustible gases, with a pressure limit of 2x the pressure range. It has a 1/4" male NPT process connection and a Type 316L SS wetted material. The dimensions are 3.00" OD x 1.90" deep (max), and it has a battery life of 2000 hours. The gauge also has an auto shut-off feature and a low battery indicator.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) IP Protection
IP66
Component
Digital Pressure Gauge
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Measurement Accuracy
0.50%
(Instrument-Sensor) NEMA Protection
NEMA 4/4X
(Instrument-Sensor) Temperature Range
0 - 130°F/-18 - 55°C
(Instrument-Sensor) Supply Voltage
AAA Battery
Manufacturer
Dwyer Instruments
Features
High accuracy provides exceptional measurement minimizing costly out of specification conditions
Backlit 4-digit display provides clear parallax-free reading reducing potential for errors
Battery-powered gage with auto-shutoff eliminates wiring and prolongs battery life reducing service calls
Push-button zero reduce installation and service time
