Code: 568883

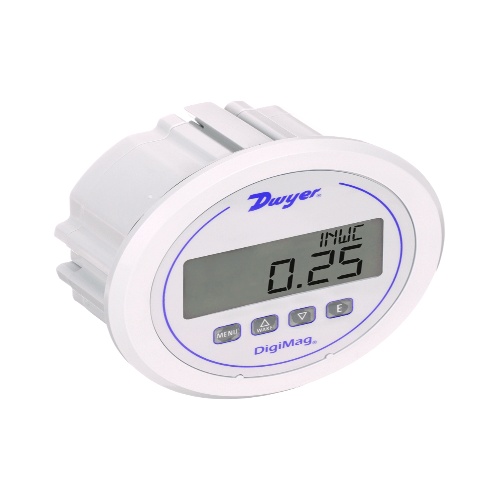

Dwyer DM-1208 Digimag® Digital Differential Pressure/Flow Gauge
Normally In Stock
Dwyer DM-1208 - DigiMag® differential digital flow gauge, range 0-10" w.c.
Condition: New
Usually ships Same Day or Next Day$361.30
Sale Price
$301.08
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DM-1208 Digimag® is a digital differential pressure and flow gauge that operates in temperatures ranging from 0 to 140°F (-18 to 60°C). It has an accuracy of ±1% FS, with the exception of ranges 1" w.c. and below, which have an accuracy of ±2% FS. It can be powered by a 9V battery or an external power supply and has an enclosure rating of NEMA 4X (IP66). The display is a 4-digit LCD, and the gauge supports various engineering units. It has a compact size with dimensions of 5" (127 mm) in diameter and is suitable for air and non-combustible gases. The battery life depends on the display update setting, ranging from 150 hours to 1.5 years.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
Component
Differential Pressure Gauge
(Instrument-Sensor) Application
Air And Non-Combustible Compatible Gases
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Temperature Range
0 - 140°F/-18 - 60°C
(Instrument-Sensor) Supply Voltage
9 V Battery
(Instrument-Sensor) Supply Voltage
9-24 VDC
(Instrument-Sensor) Measurement Accuracy
2.0%
Manufacturer
Dwyer Instruments
Features
The Series DM-1000 DigiMag® Digital Differential Pressure Gage is the ideal digital instrument to take the place of analog mechanical pressure gages
The DigiMag® Digital Gages are more versatile than analog gages with their ability to be fieldprogrammed to display many commonly used engineering units as well as percent of full scale
The Series DM-1000 can be programmed in 8 commonly used engineering units plus percent of full scale
This capability allows quick units selection on site, eliminating the need to calculate various unit conversions
The DigiMag® Digital Differential Pressure Gages have an added feature for filter applications where a set point can be input where the display will blink when the filter is dirty, alerting the user that a maintenance action needs to occur.
