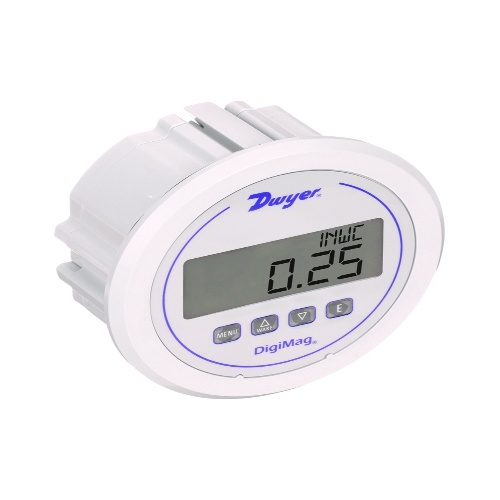

Dwyer DM-1125 Digimag® Digital Differential Pressure/Flow Gauge
Normally In Stock
Code: 568875
Dwyer DM-1125 - DigiMag® differential digital pressure gauge, range 2-0-2" w.c.
Condition: New
Usually ships Same Day or Next Day$287.38
Sale Price
$239.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DM-1125 Digimag® Digital Differential Pressure And Flow Gauge is a versatile and accurate device suitable for measuring air and compatible gases. It features a 4-digit LCD display, a NEMA 4X enclosure, and a temperature range of 0 to 140°F. Power can be supplied by a 9V battery or external power source (9-24 VDC). The gauge has a high degree of accuracy, with ±1% FS for most ranges and ±2% FS for ranges 1" w.c. and below. It has a compact size with a 5" OD front face and is made from glass filled plastic. The gauge is easy to connect with a removable terminal block for 16 to 26 AWG wires. Battery life varies depending on the display update setting, with a typical range of 150 hours to 1.5 years. The DM-1125 offers multiple engineering units for measurement and allows for adjustable display update intervals.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
Component
Differential Pressure Gauge
(Instrument-Sensor) Application
Air And Non-Combustible Compatible Gases
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Temperature Range
0 - 140°F/-18 - 60°C
(Instrument-Sensor) Supply Voltage
9 V Battery
(Instrument-Sensor) Supply Voltage
9-24 VDC
(Instrument-Sensor) Measurement Accuracy
2.0%
Manufacturer
Dwyer Instruments
Features
The Series DM-1000 DigiMag® Digital Differential Pressure Gage is the ideal digital instrument to take the place of analog mechanical pressure gages
The DigiMag® Digital Gages are more versatile than analog gages with their ability to be fieldprogrammed to display many commonly used engineering units as well as percent of full scale
The Series DM-1000 can be programmed in 8 commonly used engineering units plus percent of full scale
This capability allows quick units selection on site, eliminating the need to calculate various unit conversions
The DigiMag® Digital Differential Pressure Gages have an added feature for filter applications where a set point can be input where the display will blink when the filter is dirty, alerting the user that a maintenance action needs to occur.
