Dwyer CX-11 Coolpoint® Vortex Shedding Flowmeter
Normally In Stock
Code: 568753

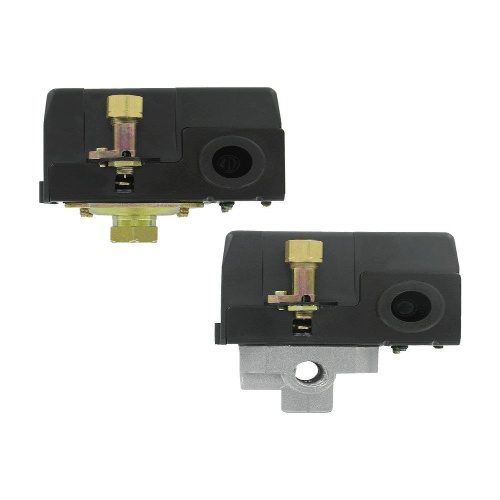

Dwyer CX-11 - Compressor pressure switch, 1 port, range 25-100 psig (1.7-6.9 bar), approx. adj. deadband 20-30 psig (1.4-2.1 bar), max. pressure 129 psig (8.9 bar).
Condition: New
Usually ships Same Day or Next Day$26.58
Sale Price
$22.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer CX-11 Coolpoint® Vortex Shedding Flowmeter is a versatile and efficient device that measures flow and temperature accurately. With a range of 35 to 210°F (2 to 99°C) and an accuracy of ±2%, it is suitable for a variety of applications. It requires a power input of 10-30 VDC and offers various output options. The flowmeter comes with a NEMA 4X enclosure rating and is compatible with a wide range of liquids. Its compact design features a 3-digit or 4-digit LED display and a response time of 450 ms. The wetted materials are durable and can withstand pressures up to 300 psig. With a deadband of 2.5% FS for smaller sizes and 5% FS for larger sizes, it provides reliable performance. The flowmeter has a maximum viscosity of 15 cP and a turndown ratio of 10:1 (20:1 optional), making it a highly efficient device.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Application
Liquid
Component
Flow Meter
(Instrument-Sensor) Type
Coolpoint® Vortex Shedding
(Instrument-Sensor) Temperature Range
35 - 210°F/2 - 99°C
(Instrument-Sensor) Measurement Accuracy
2.0%
Manufacturer
Dwyer Instruments
Features
The Series CX Compressor Pressure Switches are designed with a 20 amp normally closed SPST switch for direct control of pumps and motors
The set point and deadband are both easily adjustable via screw terminals inside the cover
For ease of installation, the switches come with a 1/4˝ female NPT process connection or the optional 4-port connection block on the CX-4 models
Besides making installation easier, one of the other ports can be used to install a pressure gage
Plus, these switches can be mounted in any orientation
These units are perfect for regulating tank pressure on small air compressors
The CX series switches come with an unloader valve, which prevents compressors from starting under load
They also come with an auto/off disconnect lever for manually cutting off the load
When the lever is in the off position, there is a test button inside the housing that can be pushed to turn on the load.
