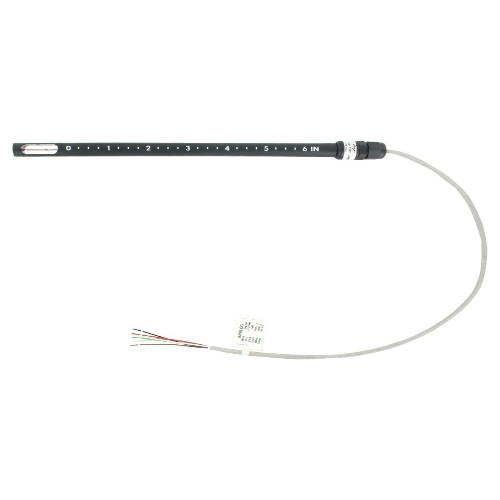

Dwyer AVPT-H05C1A06 Pencil Style Air Velocity Transmitter
Normally In Stock
Code: 568573
Dwyer AVPT-H05C1A06 - Air velocity transmitter, 3% Accuracy, 5 m/s, 6" probe, 20" pre-wired cable, analog output
Condition: New
Usually ships Same Day or Next Day$356.71
Sale Price
$297.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer AVPT-H05C1A06 is a pencil-style air velocity transmitter with a temperature range of -4 to 140°F. It offers high accuracy readings of ±(3% reading +40 FPM) and has a quick response time of 4 seconds. With a NEMA 3 enclosure rating and clean air service, it is suitable for various applications. The transmitter requires a 24 VAC/VDC power supply and has an analog output of 0-10 V. It is equipped with a 6" or 12" probe and offers selectable BACnet MS/TP at the time of order.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) Application
Air
(Instrument-Sensor) Temperature Range
-4 - 140°F/-20 - 60°C
(Instrument-Sensor) Measurement Accuracy
5.0%
(Instrument-Sensor) Measurement Accuracy
3.0%
Component
Air Velocity Transmitter
Manufacturer
Dwyer Instruments
Features
Sensing elements have been coated with an engineered conformal coating to ensure durability and longevity
Varying lengths for easy installation
Functionality at temperatures below freezing
