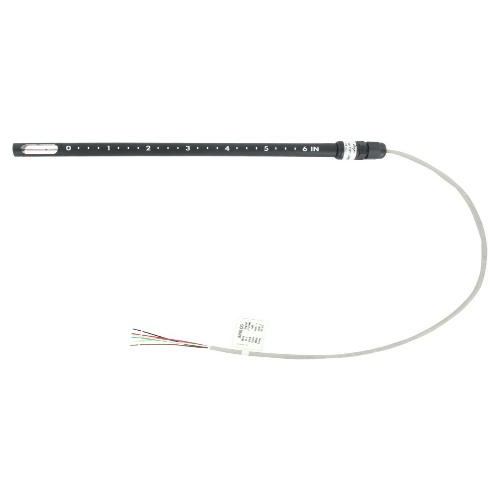

Dwyer AVPT-H02C1A12 Pencil Style Air Velocity Transmitter
Normally In Stock
Code: 568568
Dwyer AVPT-H02C1A12 - Air velocity transmitter, 3% accuracy, 2000 FPM,12" probe, 20" pre-wired cable, analog output
Condition: New
Usually ships Same Day or Next Day$383.51
Sale Price
$319.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer AVPT-H02C1A12 is a pencil style air velocity transmitter with a temperature range of -4 to 140°F (-20 to 60°C). It offers both standard and high accuracy options for precise readings. With a response time of 4 seconds and an enclosure rating of NEMA 3, it is suitable for clean air environments. The transmitter operates on 24 VAC/VDC power and has a current consumption of less than 50 mA. It features an analog output of 0-10 V (0-5 V configurable) and can be ordered with BACnet MS/TP compatibility. The probe length is available in 6" or 12" options. Overall, this transmitter is a reliable and efficient solution for air velocity measurements.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) Application
Air
(Instrument-Sensor) Temperature Range
-4 - 140°F/-20 - 60°C
(Instrument-Sensor) Measurement Accuracy
5.0%
(Instrument-Sensor) Measurement Accuracy
3.0%
Component
Air Velocity Transmitter
Manufacturer
Dwyer Instruments
Features
Sensing elements have been coated with an engineered conformal coating to ensure durability and longevity
Varying lengths for easy installation
Functionality at temperatures below freezing
