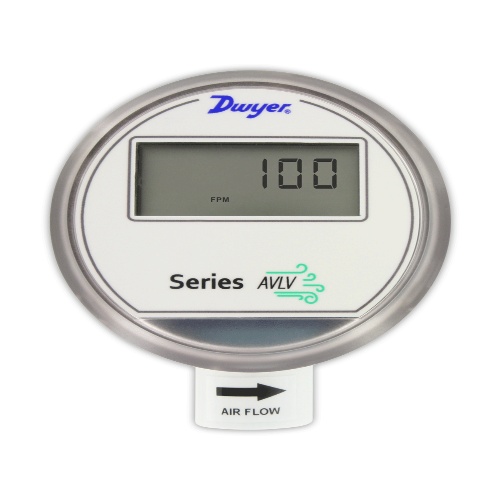

Dwyer AVLV-2DM1 Air Velocity Transmitter
Normally In Stock
Code: 568563
Dwyer AVLV-2DM1 - Air velocity transmitter, 2% accuracy, duct mount, Modbus" communication
Condition: New
Usually ships Same Day or Next Day$497.23
Sale Price
$414.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer AVLV-2DM1 is an Air Velocity Transmitter that operates in a temperature range of 32 to 122°F (0 to 50°C). It has a response time of 4 seconds and offers field-selectable ranges of 100, 200, 300, or 400 FPM (0.5, 1, 1.5, or 2 m/s). The transmitter is enclosed in a NEMA 4X (IP66) rated housing and has a 5-digit LCD display (optional). It can be powered by 24 VDC ±20% or 24 VAC ±20% and provides output signals of 4-20 mA, 0-5 VDC, or 0-10 VDC. The device also features digital push-button zero and span adjustments. Suitable for clean air and non-combustible gases, it has a humidity range of 5 to 95% RH (non-condensing).
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Application
Air
(Instrument-Sensor) Application
Compatible/Non-Combustible Gases
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Component
Air Velocity Transmitter
Manufacturer
Dwyer Instruments
Features
Minimal preventative maintenance as sensing element is covered with an engineered protective coating
Easy field setup via the on board dip switches for range and units
