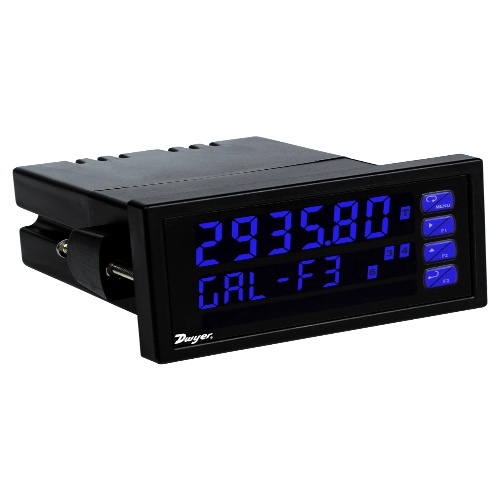

Dwyer APM-221 Dual Line Configurable Panel Meter
Normally In Stock
Code: 568549
Dwyer APM-221 - Analog panel meter, 12-24 VDC, 2 relays, 4-20 mA transmitter.
Condition: New
Usually ships Same Day or Next Day$1481.27
Sale Price
$1234.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer APM-221 is a dual line configurable panel meter with an operating temperature range of -40 to 149°F (-40 to 65°C). With an accuracy of ±0.03% of calibrated span ±1 count, it offers precise measurements. It has multiple power options and is enclosed in a NEMA 4X and IP65-rated casing. The meter accepts various electrical connections and provides a 4-20 mA output signal. The dual-line 6-digit display and user-selectable decimal points ensure clear and customizable readings. The meter has programmable time delays and supports both internal and external relays. It comes with free USB-based programming software.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Supply Voltage
12-24 VDC
(Instrument-Sensor) Temperature Range
Storage: -40 - 185°F/-40 - 85°C
Component
Analog Panel Meter
(Instrument-Sensor) Measurement Accuracy
0.03%
(Instrument-Sensor) Temperature Range
Operating: -40 - 149°F/-40 - 65°C
(Instrument-Sensor) Supply Voltage
85-265 VAC
(Instrument-Sensor) Supply Voltage
90-265 VDC
Sub Component
Dual Line Configurable Panel Meter
Manufacturer
Dwyer Instruments
Features
NEMA 4X / IP65 front panel
Powers the transmitter / flowmeter
Dual line 6 digit display
Free USB based programming software
Display rate and total at the same time
Two or four relays and isolated 4-20 mA output options
