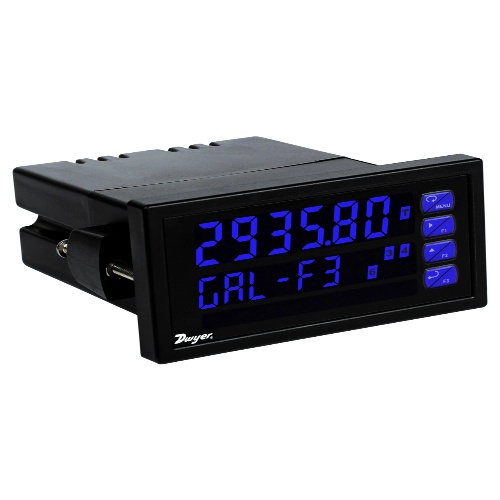

Dwyer APM-200 Dual Line Configurable Panel Meter
Normally In Stock
Code: 568546
Dwyer APM-200 - Analog panel meter, 12-24 VDC, no relays, no transmitter.
Condition: New
Usually ships Same Day or Next Day$1160.24
Sale Price
$966.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer APM-200 is a dual line configurable panel meter with a temperature range of -40 to 149°F (Operating) and -40 to 185°F (Storage). It has an accuracy of ±0.03% of calibrated span ±1 count and a power requirement of 85 to 265 VAC 50/60 Hz or 12 to 24 VDC. The enclosure rating is NEMA 4X, IP65 front, and it has removable screw terminal blocks for electrical connections. The output signal is 4 to 20 mA and it has a dual-line 6-digit display. Input options include 0 to 20 mA, 4 to 20 mA, 0 to 5V, or ±10V inputs. Decimal points are user selectable and it has programmable time delays for each relay. Maximum switch rating is 3A at 30 VDC and 125/250 VAC resistive load. The meter comes with free USB-based programming software.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Supply Voltage
12-24 VDC
(Instrument-Sensor) Temperature Range
Storage: -40 - 185°F/-40 - 85°C
Component
Analog Panel Meter
(Instrument-Sensor) Measurement Accuracy
0.03%
(Instrument-Sensor) Temperature Range
Operating: -40 - 149°F/-40 - 65°C
(Instrument-Sensor) Supply Voltage
85-265 VAC
(Instrument-Sensor) Supply Voltage
90-265 VDC
Sub Component
Dual Line Configurable Panel Meter
Manufacturer
Dwyer Instruments
Features
NEMA 4X / IP65 front panel
Powers the transmitter / flowmeter
Dual line 6 digit display
Free USB based programming software
Display rate and total at the same time
Two or four relays and isolated 4-20 mA output options
