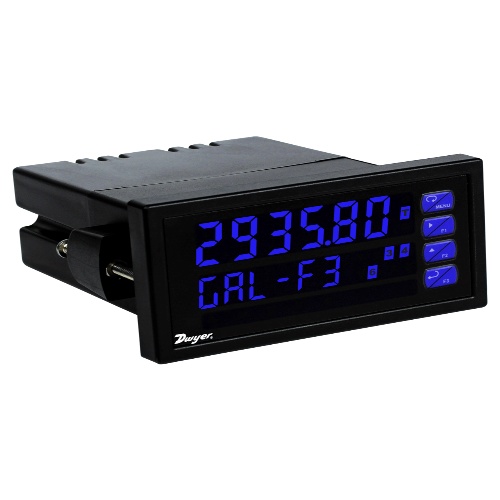

Dwyer APM-140 Dual Line Configurable Panel Meter
Normally In Stock
Code: 568544
Dwyer APM-140 - Analog panel meter, 85-265 VAC, 4 relays, no transmitter.
Condition: New
Usually ships Same Day or Next Day$1229.71
Sale Price
$1024.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer APM-140 is a dual line configurable panel meter designed for precision temperature measurement. It has an operating temperature range of -40 to 149°F (-40 to 65°C) and an accuracy of ±0.03% of calibrated span ±1 count. The meter requires a power supply of 85 to 265 VAC or 12 to 24 VDC and has a NEMA 4X, IP65 front enclosure rating. It features a dual-line 6-digit display with 0.60 in and 0.46 in digits and accepts various input signals including 0 to 20 mA, 4 to 20 mA, 0 to 5V, or ±10V. The APM-140 is easy to program with its free USB-based software. Overall, it provides reliable and accurate measurements in a compact and user-friendly design.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Supply Voltage
12-24 VDC
(Instrument-Sensor) Temperature Range
Storage: -40 - 185°F/-40 - 85°C
Component
Analog Panel Meter
(Instrument-Sensor) Measurement Accuracy
0.03%
(Instrument-Sensor) Temperature Range
Operating: -40 - 149°F/-40 - 65°C
(Instrument-Sensor) Supply Voltage
85-265 VAC
(Instrument-Sensor) Supply Voltage
90-265 VDC
Sub Component
Dual Line Configurable Panel Meter
Manufacturer
Dwyer Instruments
Features
NEMA 4X / IP65 front panel
Powers the transmitter / flowmeter
Dual line 6 digit display
Free USB based programming software
Display rate and total at the same time
Two or four relays and isolated 4-20 mA output options
