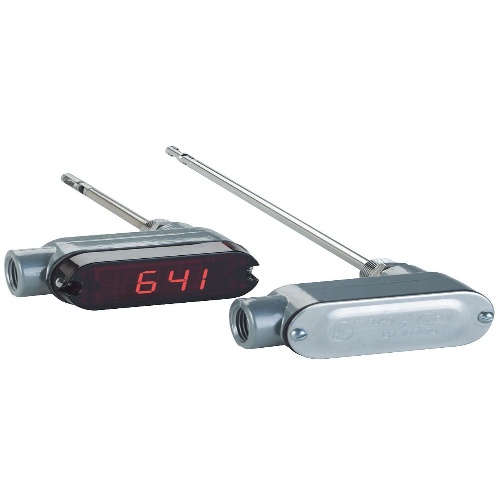

Dwyer 641-6 Air Velocity Transmitter
Normally In Stock
Code: 568273
Dwyer 641-6 - Air velocity transmitter, 6" (152.4 mm) probe length.
Condition: New
Usually ships Same Day or Next Day$830.40
Sale Price
$692.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 641-6 Air Velocity Transmitter measures air velocity and temperature. It has an operating temperature range of -40 to 212°F (-40 to 100°C) for process temperature and 32 to 140°F (0 to 60°C) for ambient temperature. The accuracy of the transmitter is ±3% FS for process gas temperature ranging from 32 to 122°F (0 to 50°C) and ±4% FS for process gas temperature ranging from -40 to 32°F & 122 to 212°F (-40 to 0°C & 50 to 100°C). It requires a power supply of 12 to 35 VDC or 10 to 16 VAC with a 1.5 A rating to handle the initial power surge. The response time is 1.5 seconds to reach 95% of the final value. The enclosure meets NEMA 4X (IP66) standards for non-LED models. It has a resolution of 1 FPM and 0.01 MPS with screw terminal electrical connections. The output signal is 4 to 20 mA with an isolated 24 V source and can be connected using 3 or 4 wires. The service is suitable for clean air and compatible non-combustible gases. It has a 4-1/2 digit red LED display. The unit is not position sensitive, but the probe must be aligned with the airflow. The pressure limit is 100 psi (6.89 bar) max and it has a 1/2" male NPT process connection. The loop resistance is 600 Ω max and the current consumption is 300 mA max. An output filter can be selected between 0.5-15 seconds.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Application
Air
(Instrument-Sensor) Temperature Range
Process: -40 - 212°F/-40 - 100°C
(Instrument-Sensor) Application
Compatible/Non-Combustible Gases
(Instrument-Sensor) Temperature Range
Ambient: 32 - 140°F/0 - 60°C
(Instrument-Sensor) Measurement Accuracy
3.0%
(Instrument-Sensor) Measurement Accuracy
4.0%
Component
Air Velocity Transmitter
Manufacturer
Dwyer Instruments
Features
Ranges from 250 FPM (1.25 MPS) to 15,000 FPM (75 MPS)
Optional bright LED display
Easy push-button set-up
Compact housing
4-20 mA output
Digital filter for signal damping
