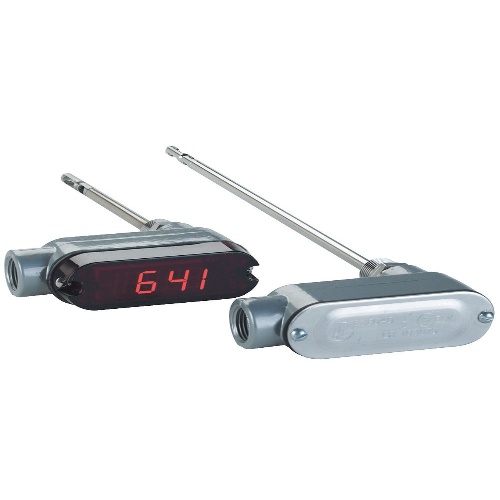

Dwyer 641-12-LED Air Velocity Transmitter
Normally In Stock
Code: 568264
Dwyer 641-12-LED - Air velocity transmitter, 12" (304.8 mm) probe length, with LED display.
Condition: New
Usually ships Same Day or Next Day$1047.53
Sale Price
$872.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 641-12-LED Air Velocity Transmitter is a reliable and accurate device for measuring air velocity. With a temperature range of -40 to 212°F and an accuracy of 3% FS, it is suitable for various applications. It operates at a power requirement of 12 to 35 VDC or 10 to 16 VAC. The transmitter has a fast response time of 1.5 s and an enclosure rating of NEMA 4X. It features a 4-1/2 digit 1/2" red LED display and an output signal of 4 to 20 mA. The device is designed for clean air and compatible, non-combustible gases.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Application
Air
(Instrument-Sensor) Temperature Range
Process: -40 - 212°F/-40 - 100°C
(Instrument-Sensor) Application
Compatible/Non-Combustible Gases
(Instrument-Sensor) Temperature Range
Ambient: 32 - 140°F/0 - 60°C
(Instrument-Sensor) Measurement Accuracy
3.0%
(Instrument-Sensor) Measurement Accuracy
4.0%
Component
Air Velocity Transmitter
Manufacturer
Dwyer Instruments
Features
Ranges from 250 FPM (1.25 MPS) to 15,000 FPM (75 MPS)
Optional bright LED display
Easy push-button set-up
Compact housing
4-20 mA output
Digital filter for signal damping
